Connecting the Television Signal 13
Using the Analog Video Cable
(Select models only)
If you are using the analog video cable to connect
your PC display to your PC, you need to connect the
cable and then set the Output switch on the cable to
match the correct video output. If you are using
component cables, you must also set the resolution
of your TV or other video display on the analog
video cable.
To use the analog video cable:
1 Make sure the PC power is disconnected.
2 Connect the analog video cable to the Analog
Video Output connector on the back of
the PC.
3 If you are using a composite or S-video cable
to connect your display to the PC, set the
switch labeled Output near the arrows toward
the S-video and composite (A) connectors.
See (D) above. Go to step 7.
4 If you are using Component video cables to
connect your display to the PC, set the switch
labeled Output near the arrows toward the
three (Y, Pb, and Pr) component connectors
(B). See (E) above. Go to step 5.
5 Check the documentation for your display to
find out the optimal resolution.

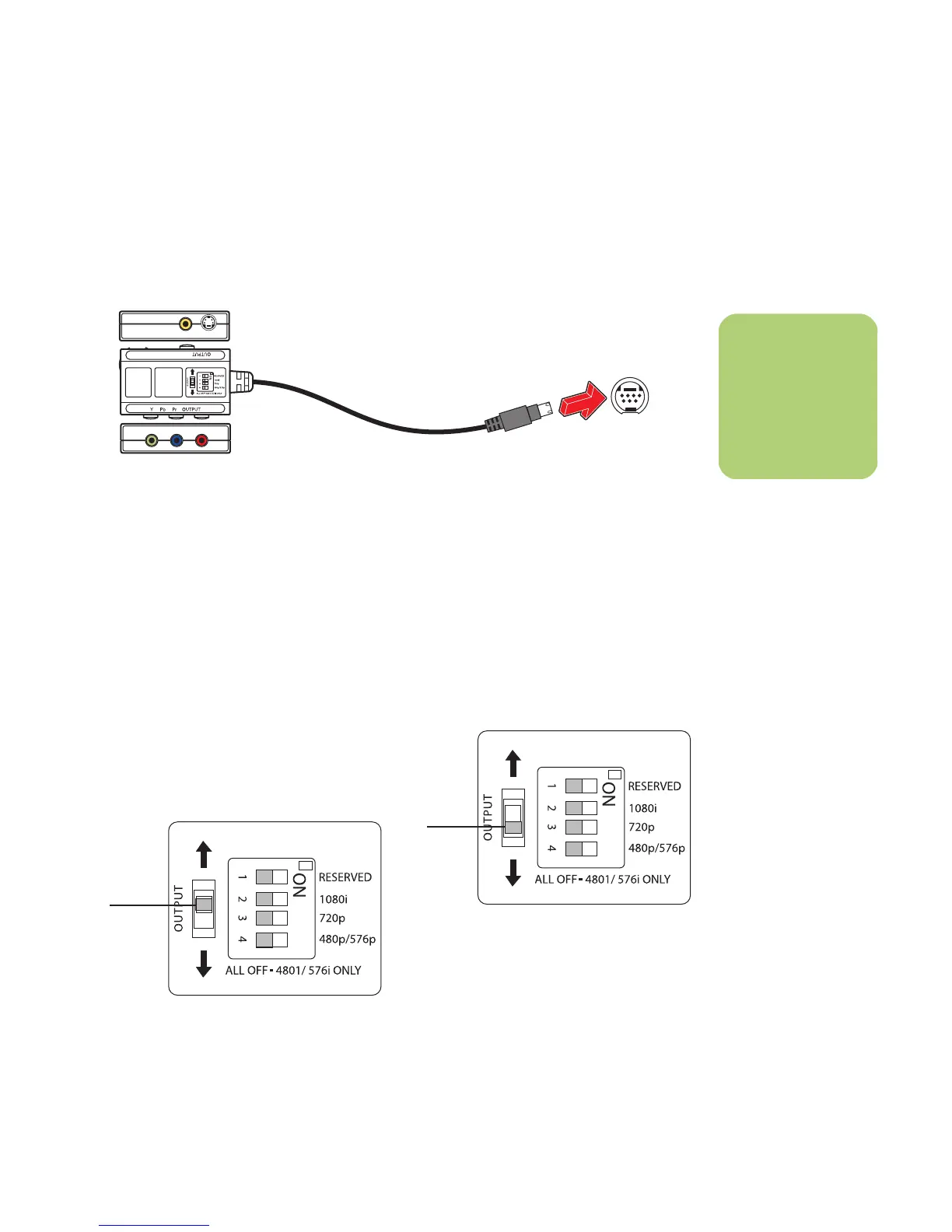

Analog Video
D
E
n
Refer to the Start
Here guide for more
information about the
various display
connection options.
B
To Next Page
