item Component Description
(5) RJ-45 (network) jack and cover Connects a network cable.
(6) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being
mishandled or stolen.

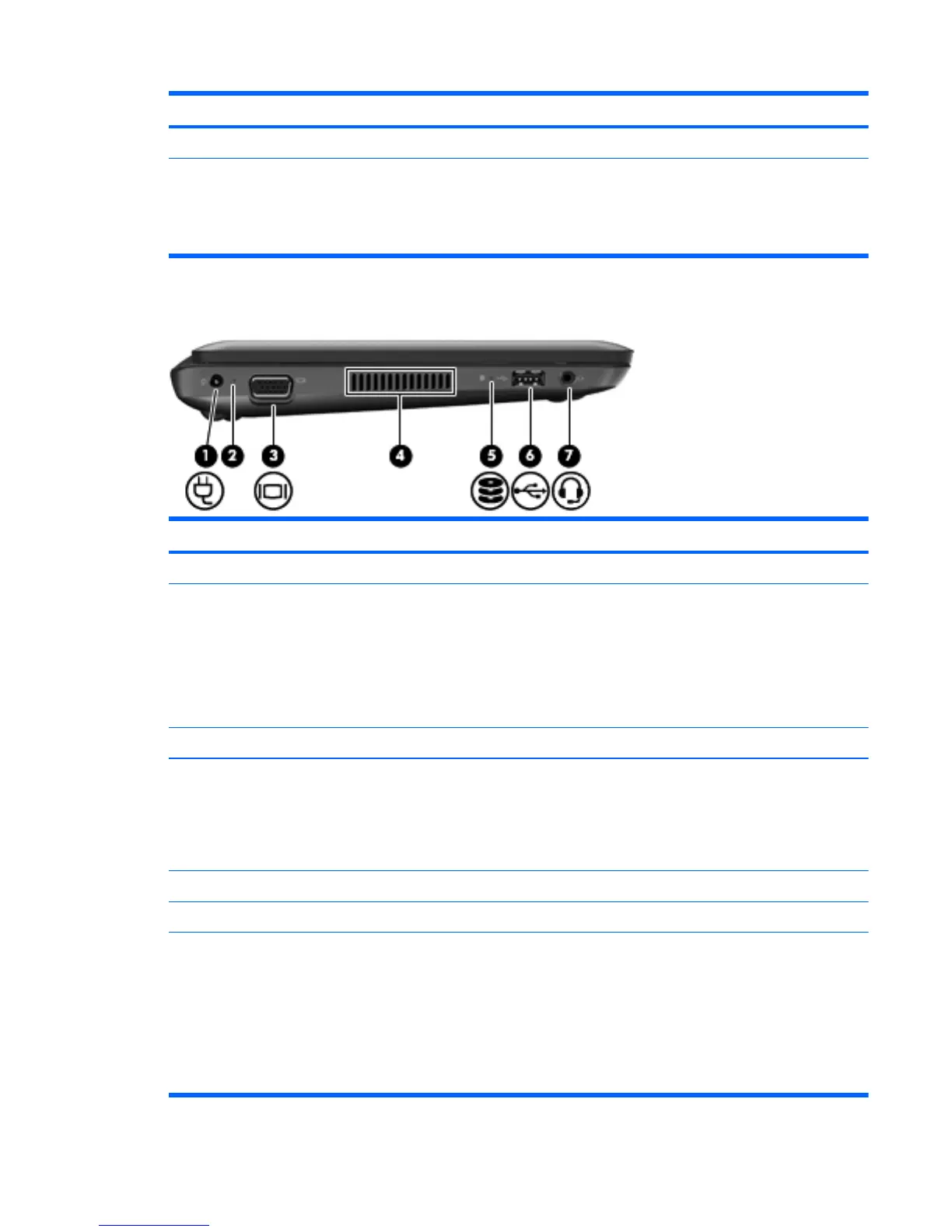

Left-side components
item Component Description
(1) Power connector Connects an AC adapter.
(2) AC adaptor light
●
White: The computer is connected to external power
and the battery is fully charged.
●
Amber: The computer is connected to external
power and the battery is charging.
●
Off: The computer is not connected to external
power.
(3) External monitor port Connects an external VGA monitor or projector.
(4) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It is
normal for the internal fan to cycle on and off during
routine operation.
(5) Drive light Blinking white: The hard drive is being accessed.
(6) USB port Connects an optional USB device.
(7) Audio-out (headphone) jack/Audio-in (microphone) jack Connects optional powered stereo speakers,
headphones, earbuds, a headset, or television audio.
Also connects an optional headset microphone.
WARNING! When a device is connected to the jack,
the computer speakers are disabled.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
Left-side components
11
