HP Mini 110 User Manual

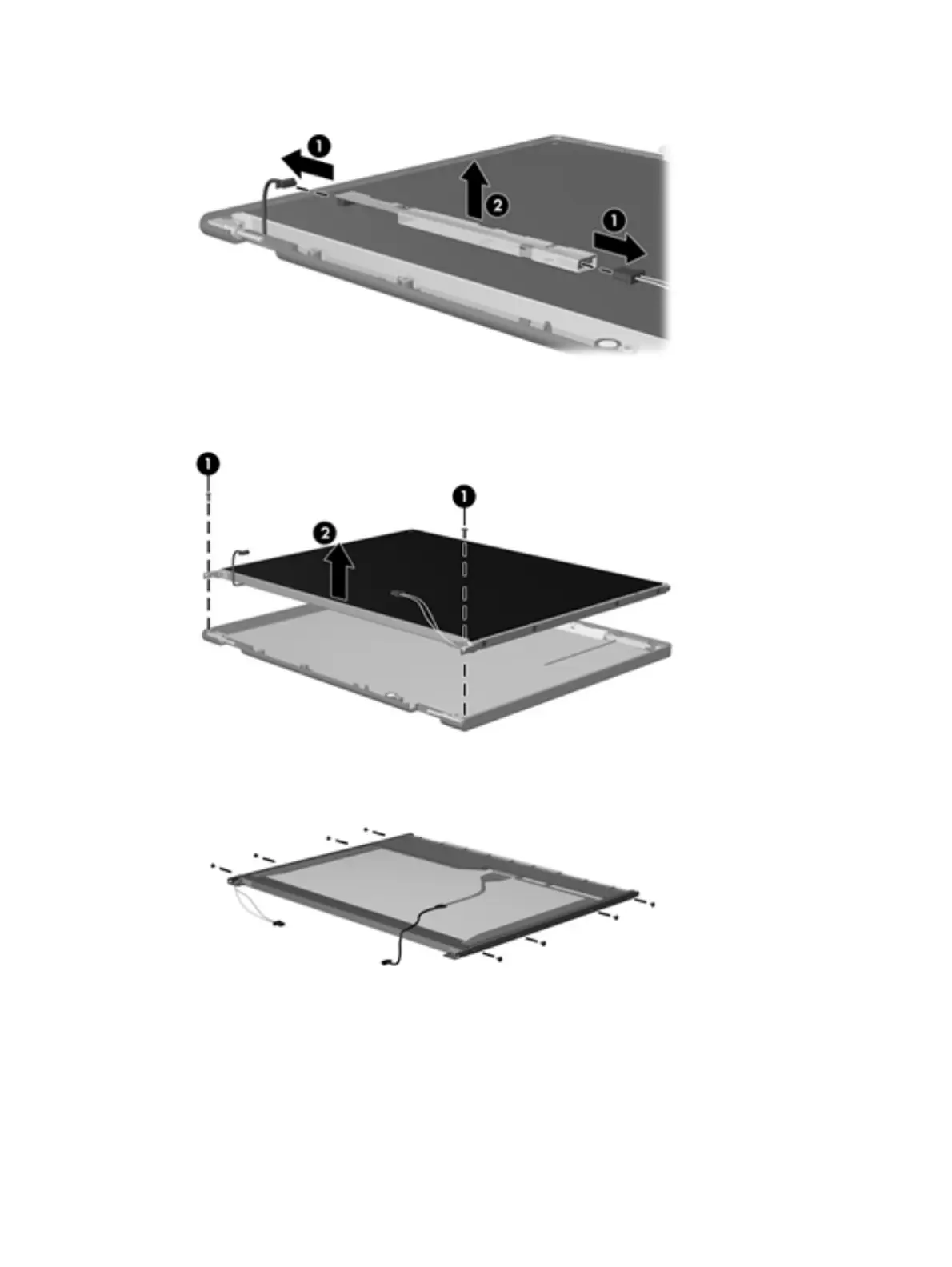

4. Disconnect all display panel cables (1) from the display inverter and remove the inverter 2.
5. Remove all screws (1) that secure the display panel assembly to the display enclosure.
6. Remove the display panel assembly (2) from the display enclosure.
7. Turn the display panel assembly upside down.
8. Remove all screws that secure the display panel frame to the display panel.
9. Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the
display panel frame.
Display
87
Download from Www.Somanuals.com. All Manuals Search And Download.

HP Mini 110 Specifications

General

Graphics	Intel GMA 950
Wireless	802.11b/g
RAM	1GB
Storage	160GB HDD
Display	10.1 inch
Resolution	1024 x 600
Weight	1.06 kg (2.34 lbs) with 3-cell battery
Ports	3 x USB 2.0, 1 x VGA, 1 x Headphone/Microphone combo
