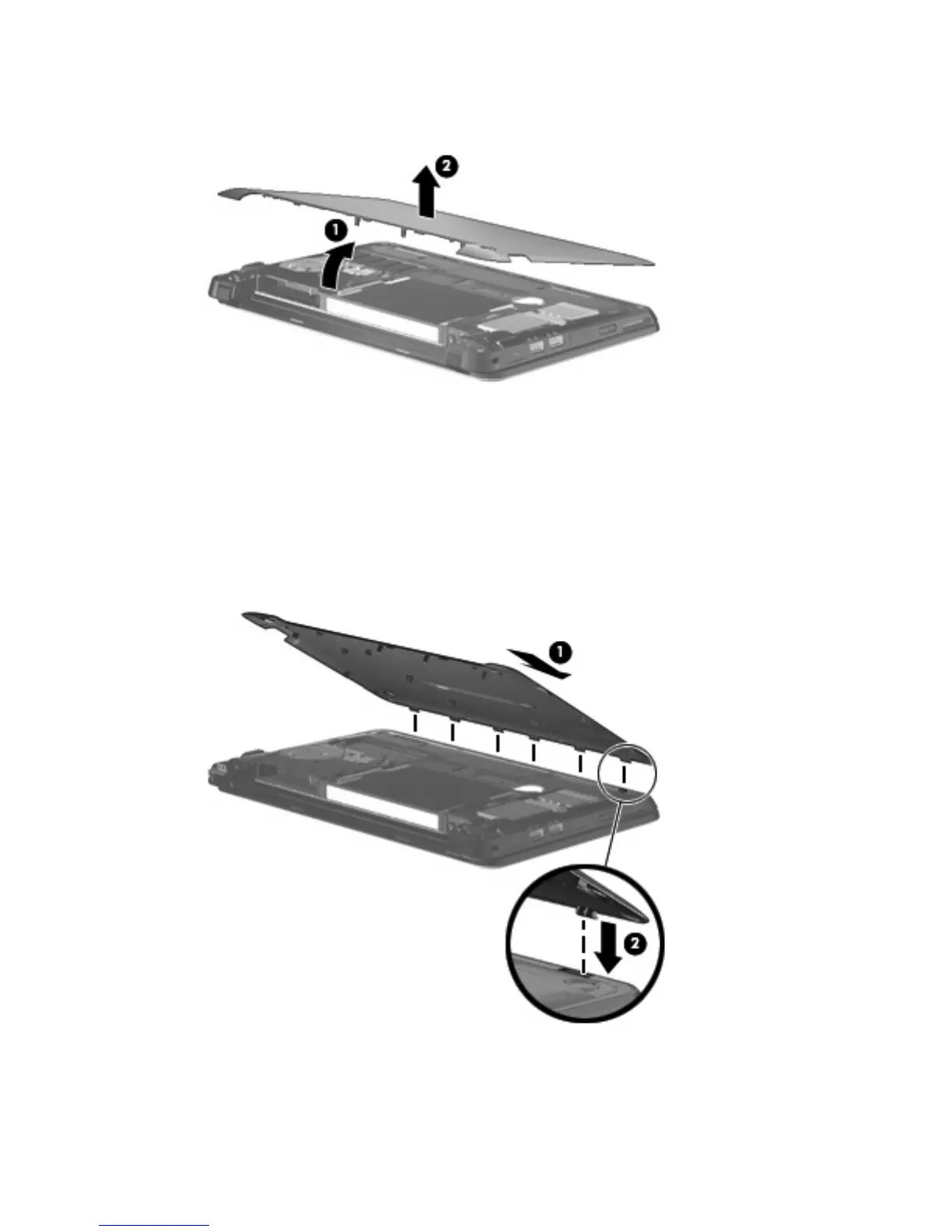

7. Lift the bottom edge of the vanity cover (1) at an angle, and then lift the vanity cover away from the
base (2).
Replacing the vanity cover
Replace the vanity cover after accessing the memory module compartment, SIM card insertion slot,
regulatory label, and other important components. To replace the vanity cover:
1. Place the vanity cover (1) above the computer at an angle, with the front edge toward the front of
the computer.
2. Seat the back edge of the vanity cover in the back edge of the computer by aligning the six tabs
on the vanity cover over the slots in the base, and then inserting the tabs into the slots (2).
Identifying the hardware 11
