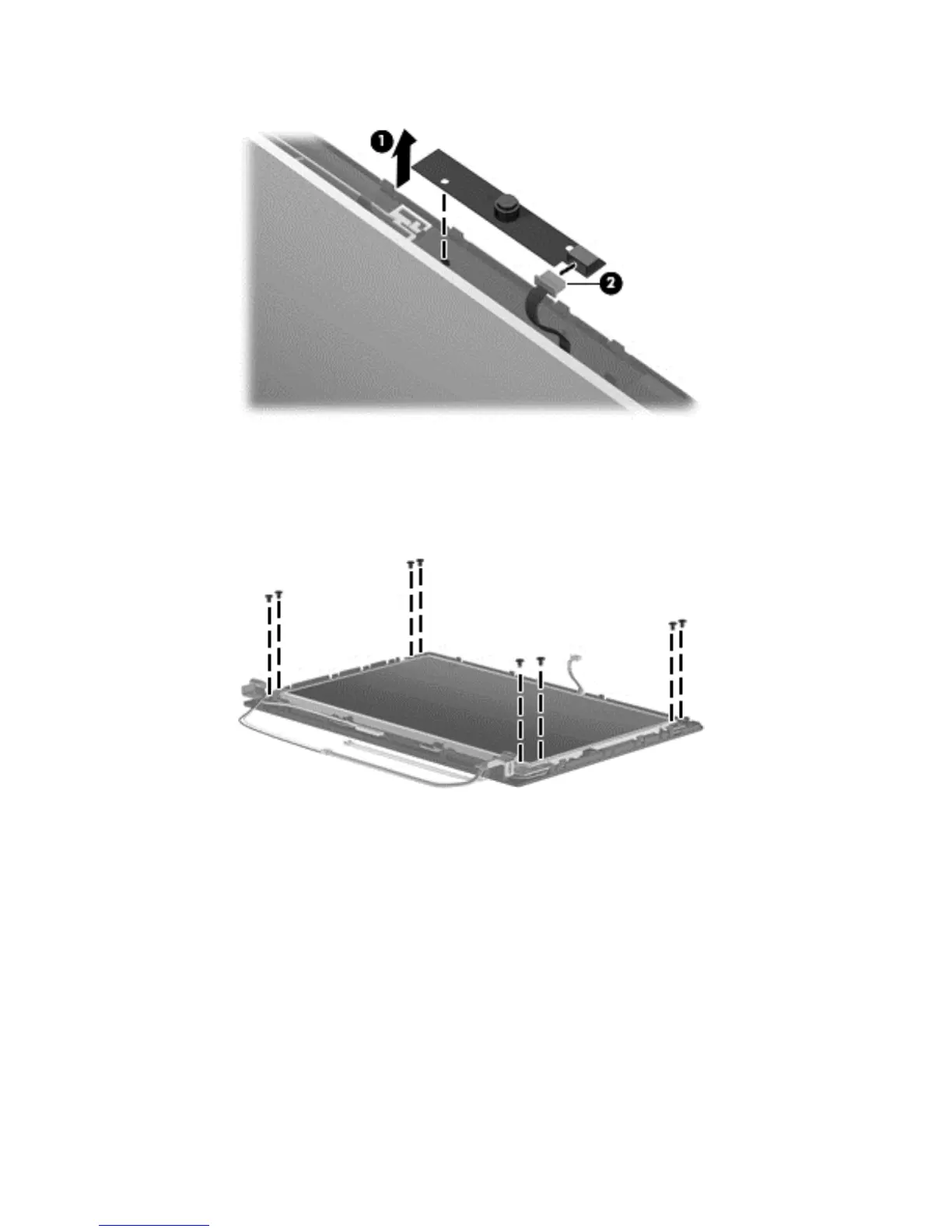

b. Disconnect the webcam cable (2) from the webcam.
c. Remove the webcam.
6. To replace the non-touch display panel:
a. Remove the 8 Phillips PM2.5×5.0 screws that secure the display panel to the display
enclosure.
b. Lift the bottom edge of the display panel up from the display back cover (1).
c. Disengage the display panel cable (2) from the left hinge clip.
d. Remove the display panel (3) from the display back cover.
Component replacement procedures 69
