– or –
On touch-screen display assemblies:

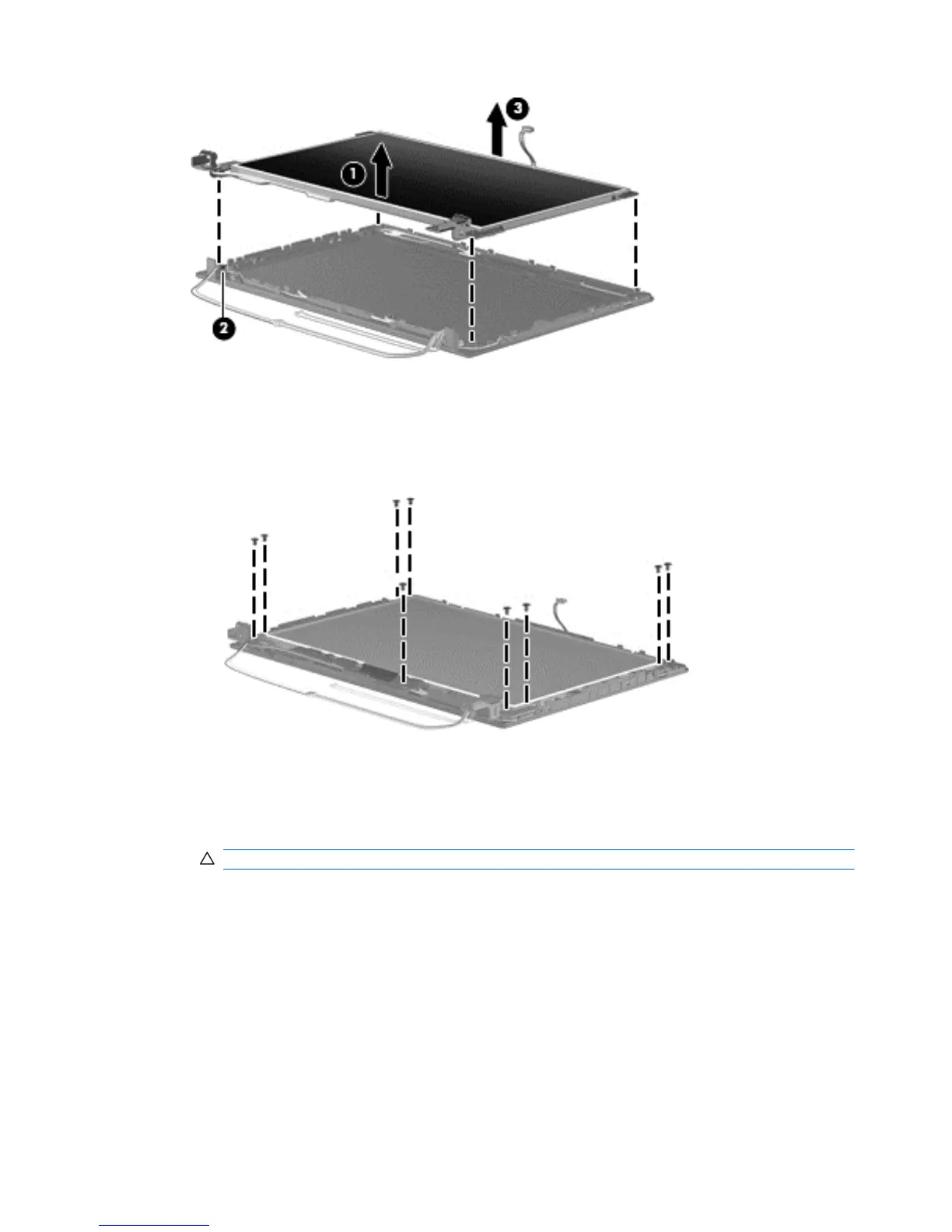

a. Remove the 9 Phillips PM2.5×5.0 screws that secure the display panel to the display
enclosure.
b. Lift the top edge of the display panel up from the back cover (1).
c. Disengage the display panel cable (2) from the left hinge clip.
d. Disengage the touch-screen display board (3) from the snap hooks on the back cover.
CAUTION: Do not bend the cable when disengaging the touch-screen display board.
e. Release the touch-screen display board (4) from display back cover.
f. Remove the display panel from display back cover (5).
