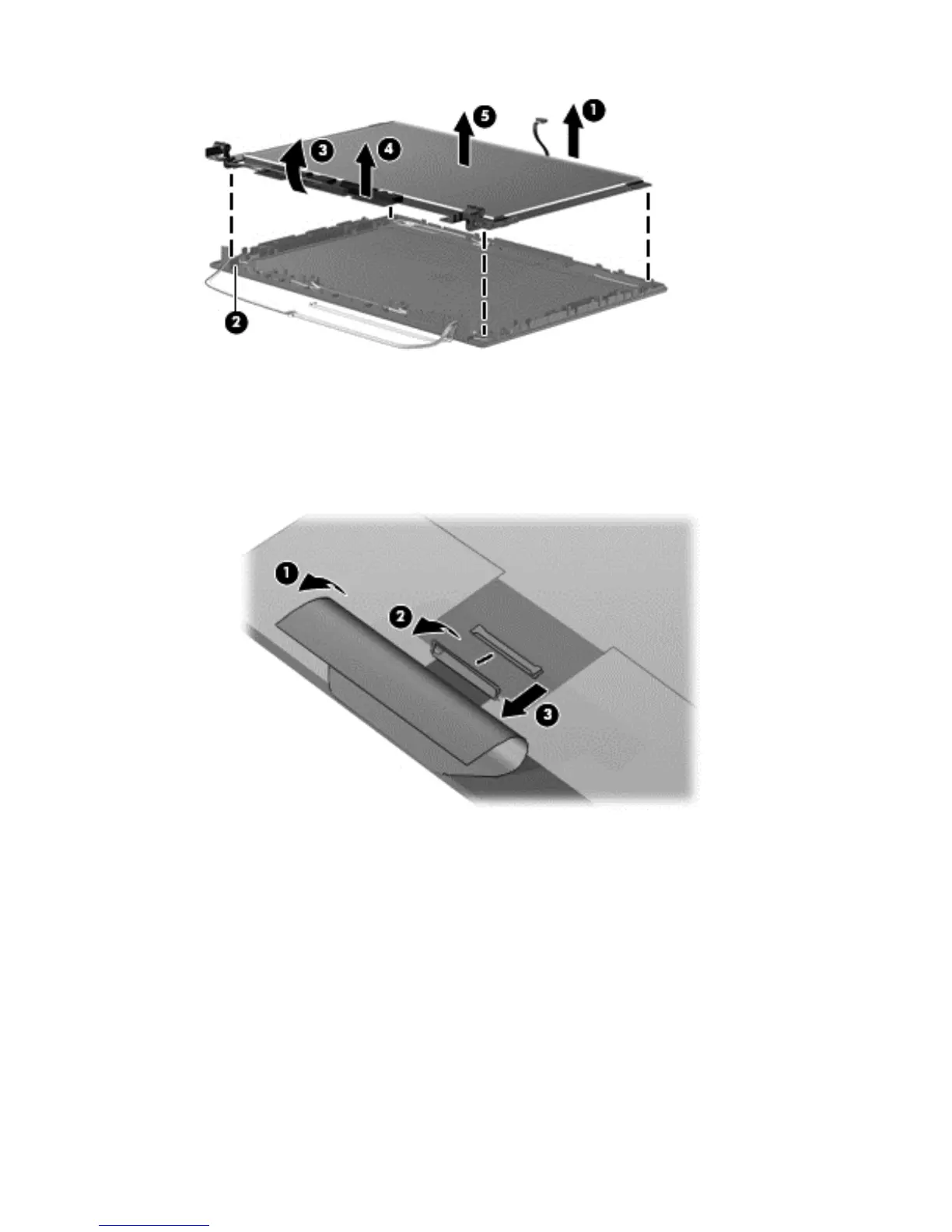

7. To replace the display panel/webcam cable:
a. Turn the display panel over, and peel back the Mylar shield (1) on the back of the display
panel.
b. Lift the adhesive strip (2) that secures the cable to the back of the display panel, and
disconnect the display panel/webcam cable (3).
Component replacement procedures 71
