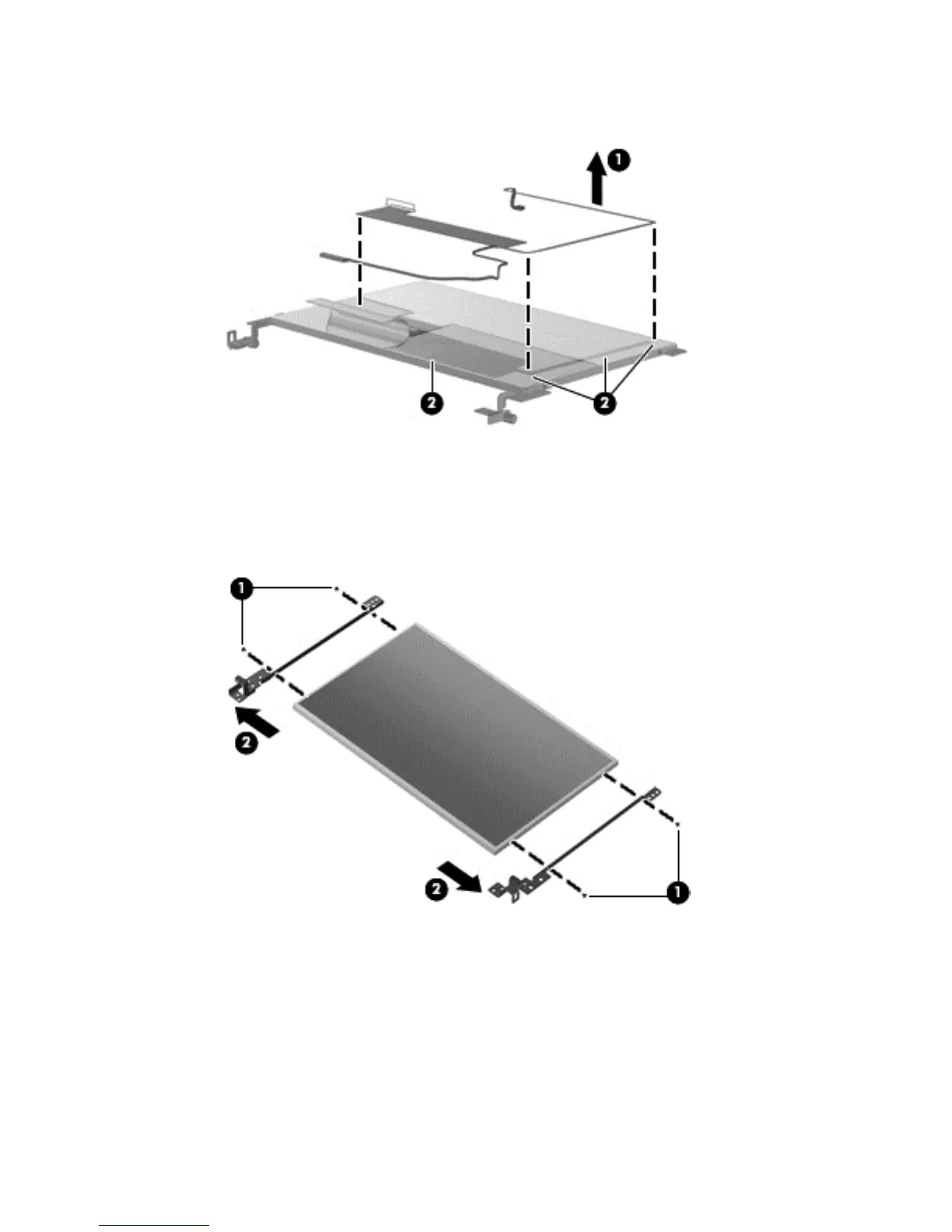

c. Release the display panel/webcam cable (1) from the adhesive points (2) along the cable
route on the back of the display panel.
d. Remove the display panel/wedcam cable.
8. To replace the display hinges:
a. Remove the 2 Phillips PM2.0×3.0 screws (1) that secure each hinge to the display panel.
b. Remove the hinges (2).
9. To replace the microphone receiver:
a. Release the microphone receiver from the clip (1) that secures it to the display enclosure.
72 Chapter 4 Removal and replacement procedures
