HP MSR 2000 Preparing For Installation

iii
Installing the router
Installing an air filter
No air filter is provided with the router. Purchase one yourself.
To install an air filter:
1. Face the left side (side of the inlet vents) of the router.
2. Install the upper and lower guide rails of the air filter to the chassis. See Figure 3.
3. Fasten the fastening screws on the guide rails with a Phillips screwdriver.

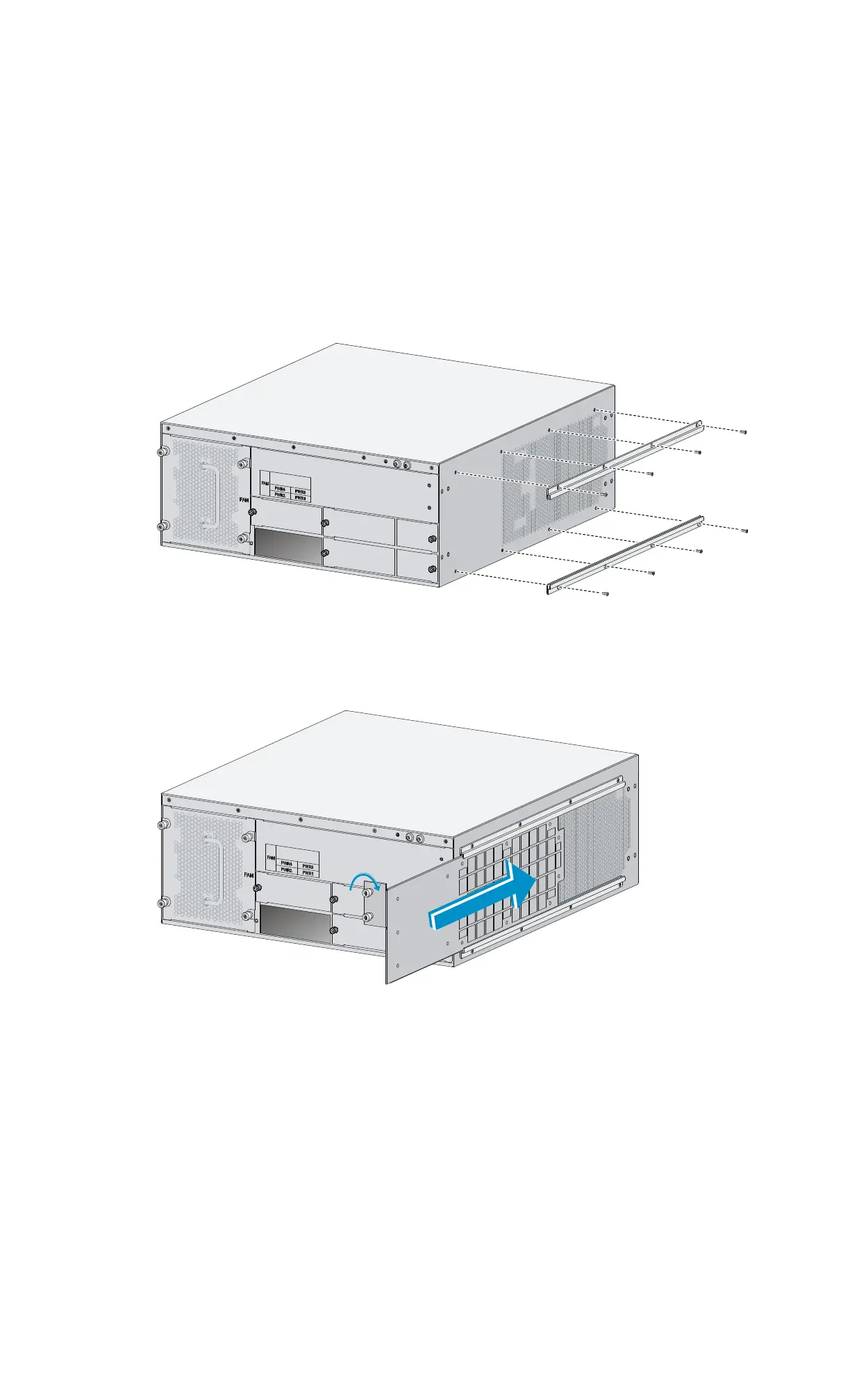

Figure 3 Installing the upper and lower guide rails
4. Push the air filter along the slide rails from the rear side of the chassis to the front.
5. Fasten the captive screws on the air filter.
Figure 4 Pushing the air filter along the guide rails

HP MSR 2000 Specifications

General

Brand	HP
Model	MSR 2000
Category	Network Router
Language	English
