HP MSR 2000 Preparing For Installation

iii

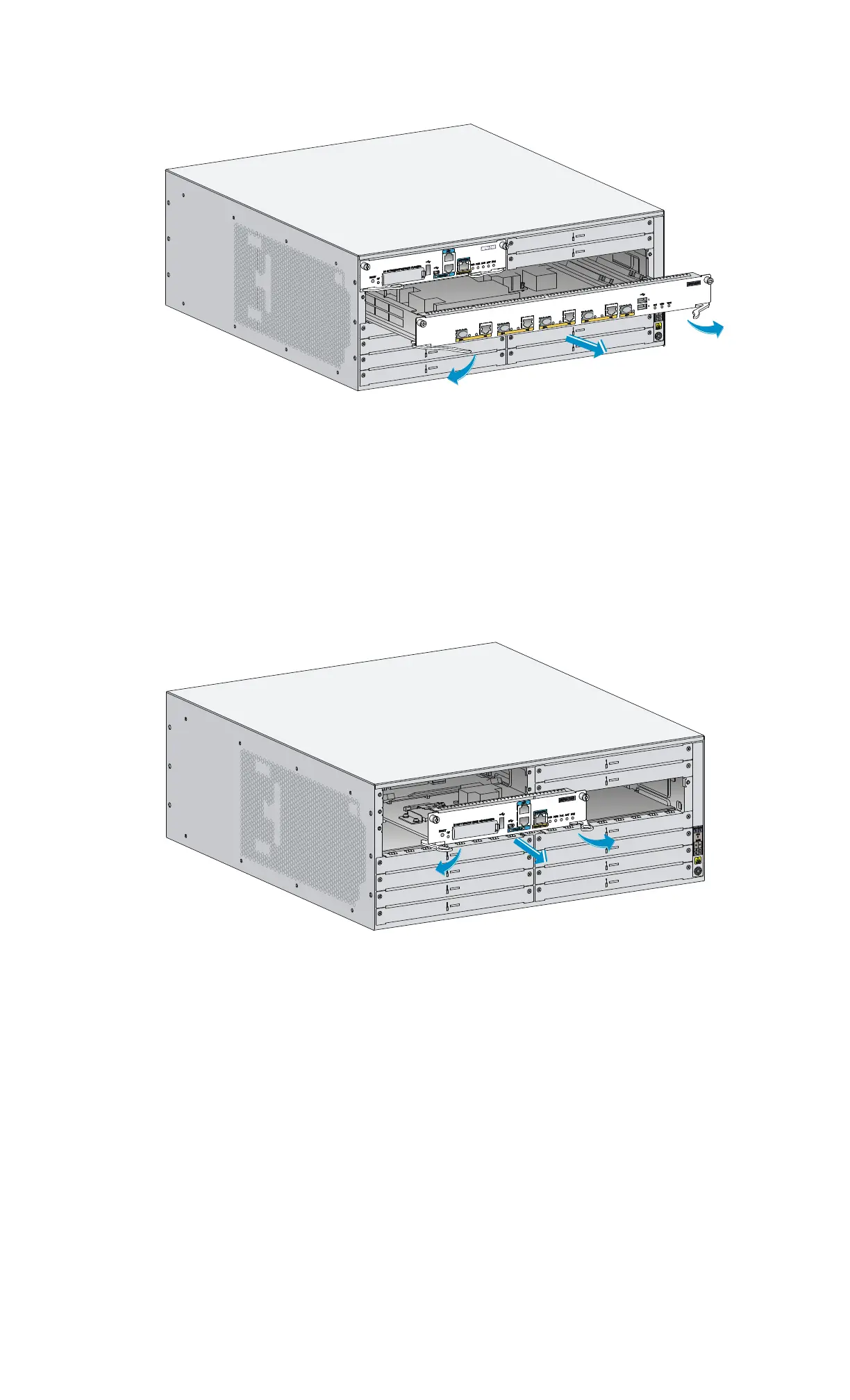

Figure 38 Removing the SPU-200
Replacing an MPU
To replace an MPU-100:
1. Use a Phillips screwdriver to loosen the captive screws of the MPU until the spring pressure is
released.
2. Pivot the ejector levers of the MPU outward, and gently pull the MPU out of the slot.
3. Install a new MPU. For the installation procedure, see "Installing the router."
Figure 39 Removing the MPU-100
Replacing a VPM
