HP MSR 2000 User Manual

xi
To connect the grounding cable:
1. Remove the two grounding screws from the rear panel of the chassis.
2. Attach the grounding screw to the ring terminal of the grounding cable. See Figure 19.
3. Use a Phillips screwdriver to fasten the grounding screw into the grounding screw hole.
4. Remove the grounding screw from the grounding point on the rack.
5. Use a needle-nose pliers to bend a hook at the other end of the grounding cable, attach it to the
grounding point, and secure it with a screw. See Figure 20.

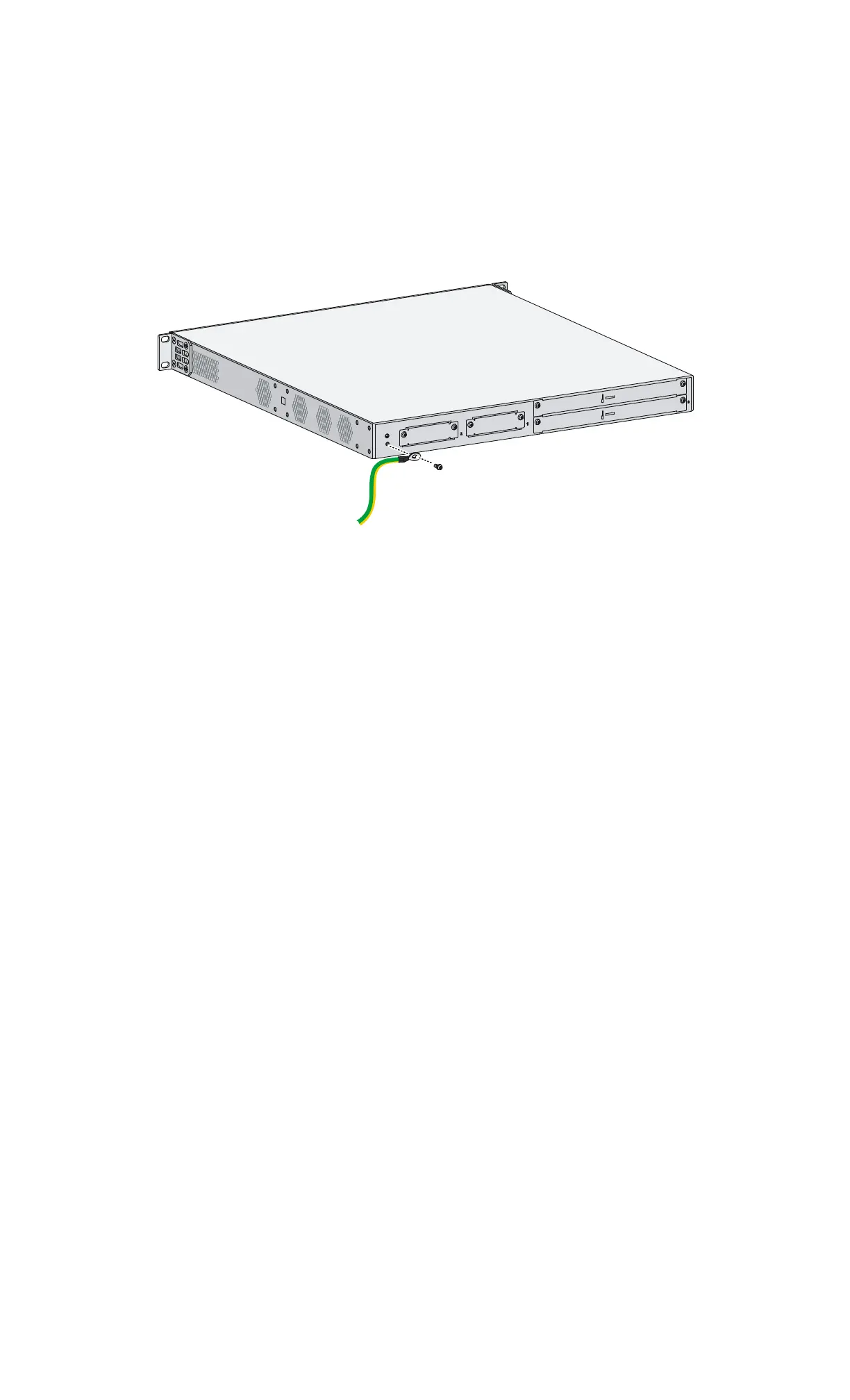

Figure 19 Connecting the grounding cable to the grounding hole of the router
