HP MSR 2000 User Manual

xvi

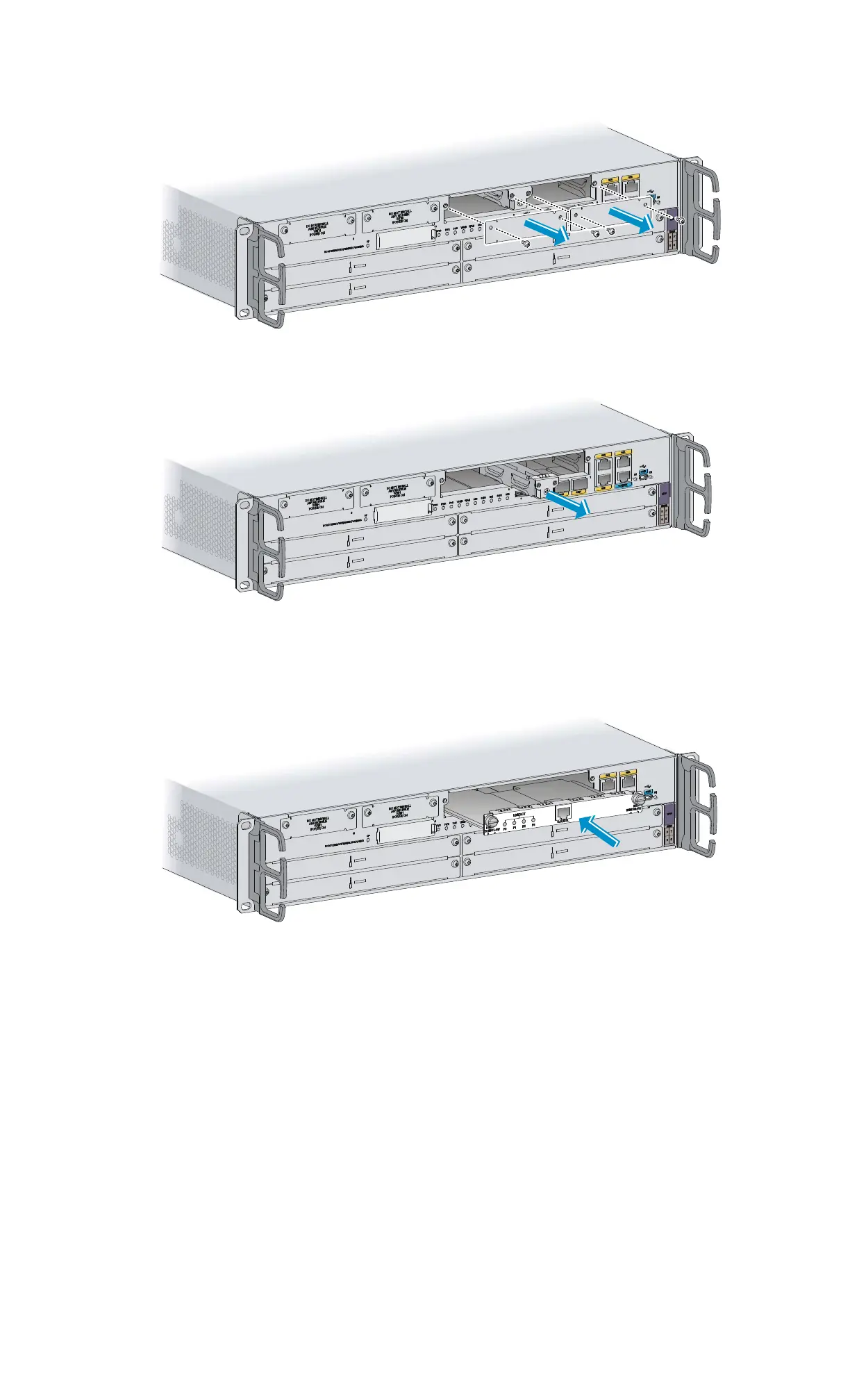

Figure 24 Removing the filler panel
Figure 25 Removing the slot divider
3. Insert the DSIC into the slot and push it along the slide rails until it makes close contact with the
backplane of the router.
Figure 26 Installing a DSIC
4. Fasten the captive screws to secure the DSIC.
Installing an HMIM
