xxv
IMPORTANT:
Only the MSR3044 and MSR3064 support power modules.
Installing an AC/DC power module
1. Face the front of the router and locate the slot to be used.
2. Loosen the captive screws with a Phillips screwdriver to remove the filler panel from the slot.
Keep the removed filler panel for future use.
Skip this step if the router is shipped with this slot empty.
3. Holding the handle of the power module with one hand and supporting the bottom of the power
module with the other hand, insert the power module slowly along the slide rails until it makes close
contact with the backplane.
4. Use a Phillips screwdriver to fasten the captive screws on the two sides of the power module.

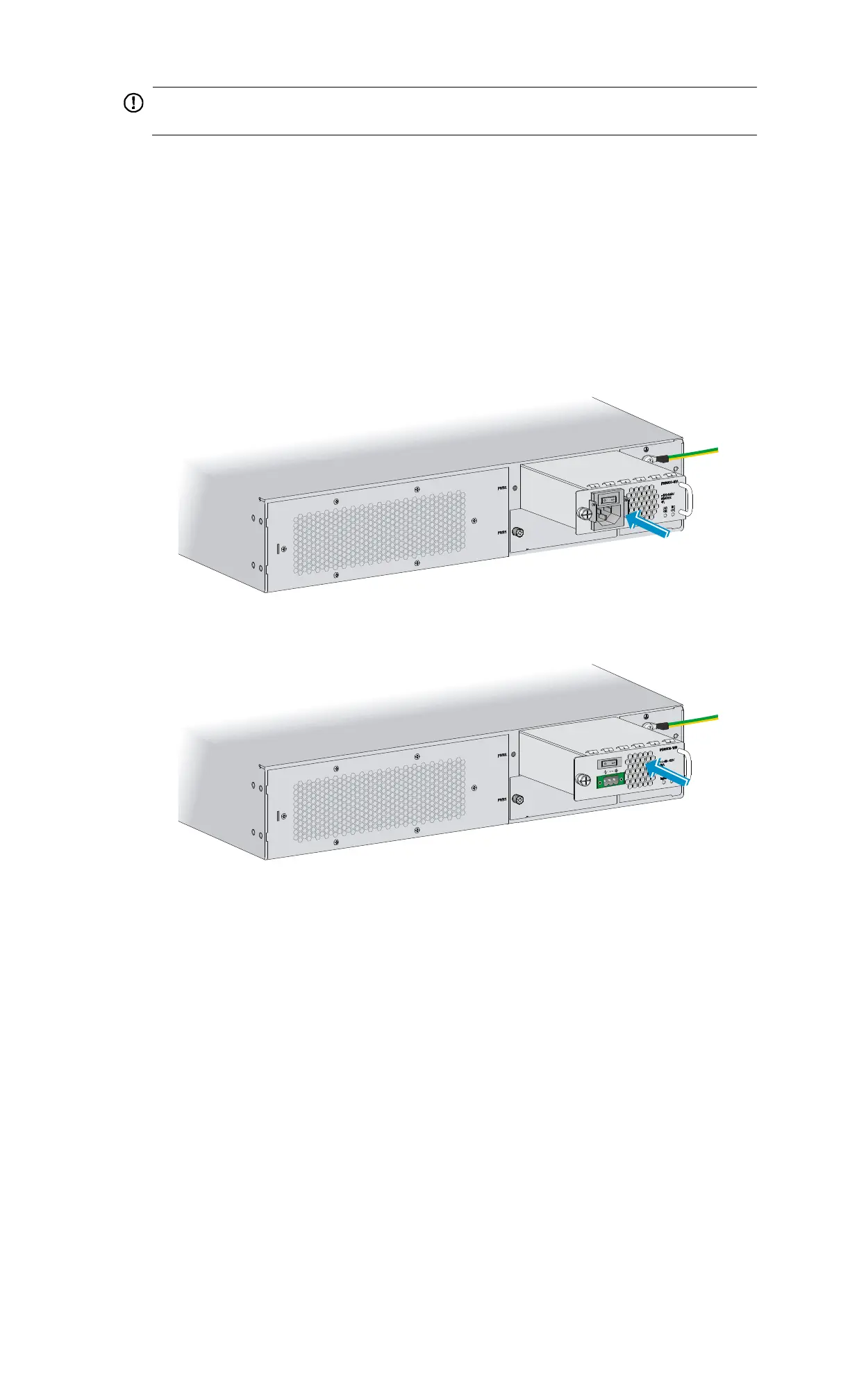

Figure 41 Installing an AC power module
Figure 42 Installing a DC power module
Installing a PoE power module
1. Face the front of the router and locate the slot to be used.
2. Loosen the captive screws with a Phillips screwdriver to remove the filler panel from the slot.
Keep the removed filler panel for future use.
Skip this step if you install the power module to the PWR1 slot.
