iv

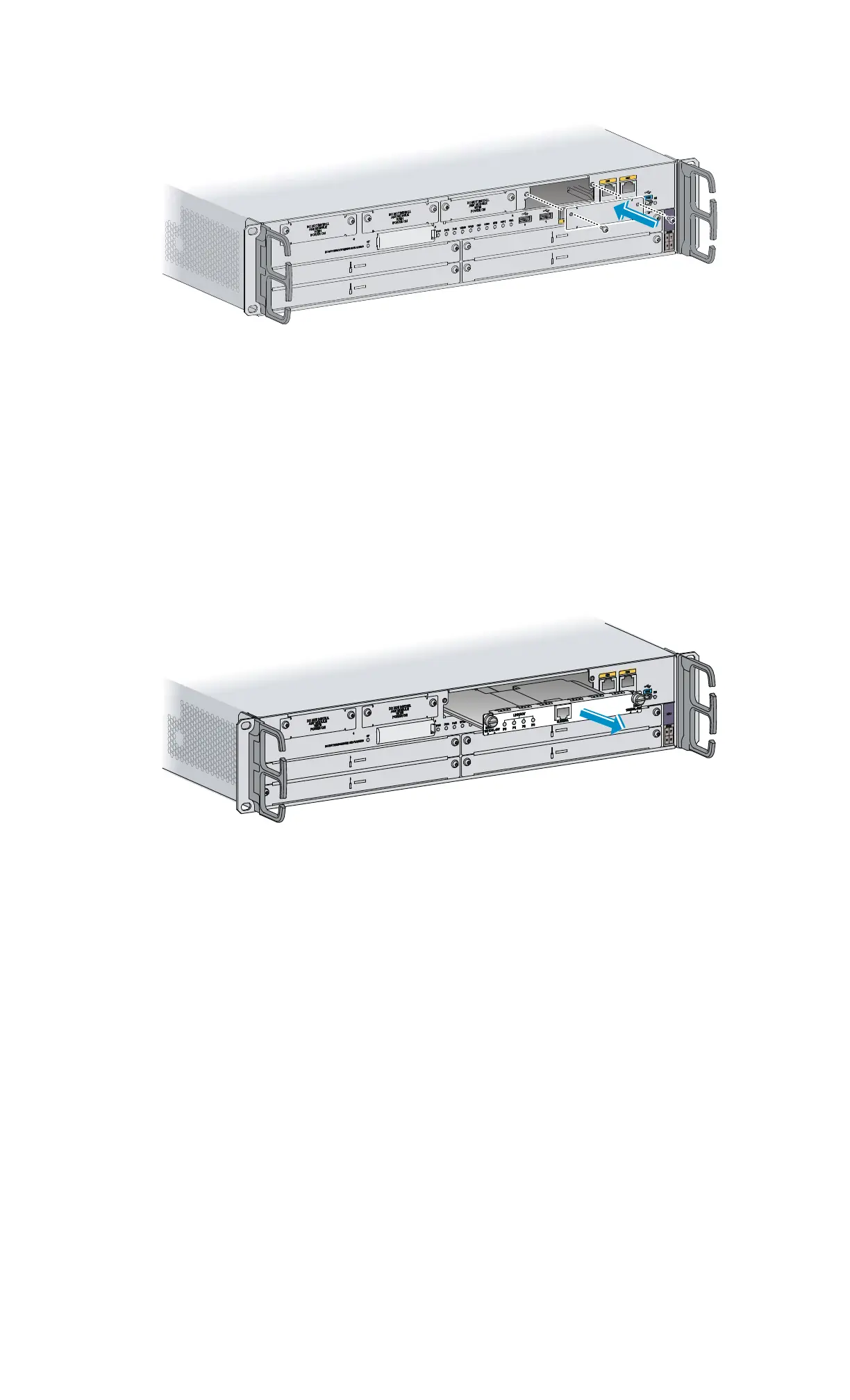

Figure 55 Installing a filler panel
Replacing a DSIC
1. Completely loosen the captive screws of the DSIC.
2. Gently pull the DSIC out along the slide rails.
If you need to install SIC or DSIC interface modules, see "Installing the router" for the installation
procedure.
To install filler panels, proceed to steps 3 and 4.
3. Gently push the slot divider into the DSIC slot along the slide rails and tighten the screws.
4. Install filler panels and tighten the screws.
Figure 56 Removing a DSIC
