IMPORTANT:
 Ensure good ventilation and 10 cm (3.94 in) of clearance around the chassis for heat dissipation.
 Avoid placing heavy objects on the router.
To mount the router on a workbench:
1. Make sure the workbench is clean, stable, and properly grounded.
2. Place the router upside down on the workbench and attach the rubber feet to the four round holes
in the chassis bottom.

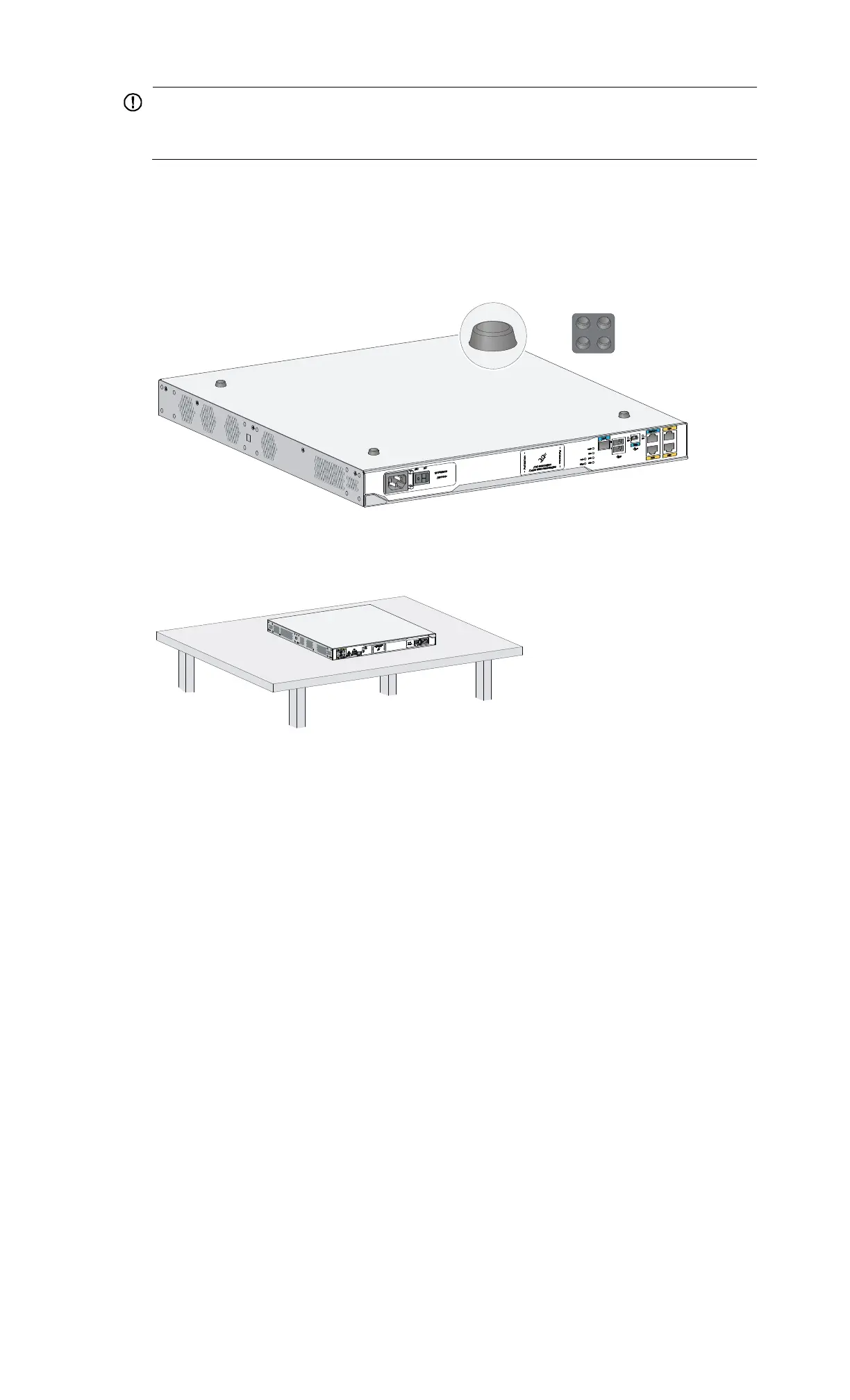

Figure 6 Attaching the rubber feet
3. Place the router on the workbench with the upside up.
Figure 7 Mounting the router on a workbench
Installing the router in a 19-inch rack
Mounting brackets
The MSR3000 routers require different types of front mounting brackets, as shown in Figure 8.
