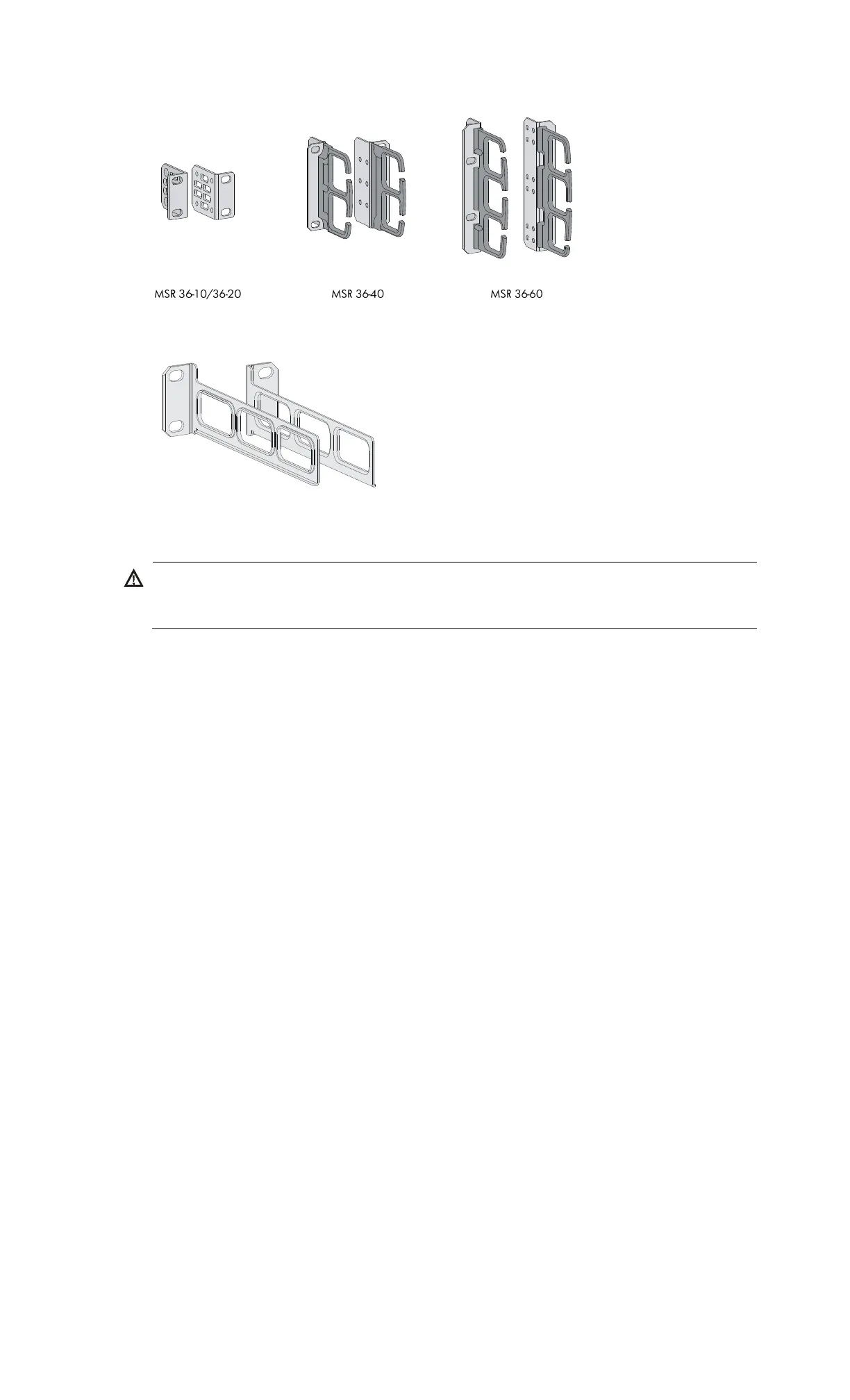

Figure 8 Front mounting brackets
Figure 9 Rear mounting brackets
Installing the router to the rack
ARNING!
The mountin
brackets can only support the wei
ht of the router. To avoid dama
e to the router, do not
place any objects on the router.
1. Use a front mounting bracket to mark the positions of cage nuts, making sure they are at the same
level.
2. Use a rear mounting bracket to mark the positions of cage nuts, making sure the front and rear
mounting brackets are at the same level.
