The SSM group range is 232.1.1.0/24.
•
IGMPv3 runs between Router A and N1, and between Router B, Router C, and N2.

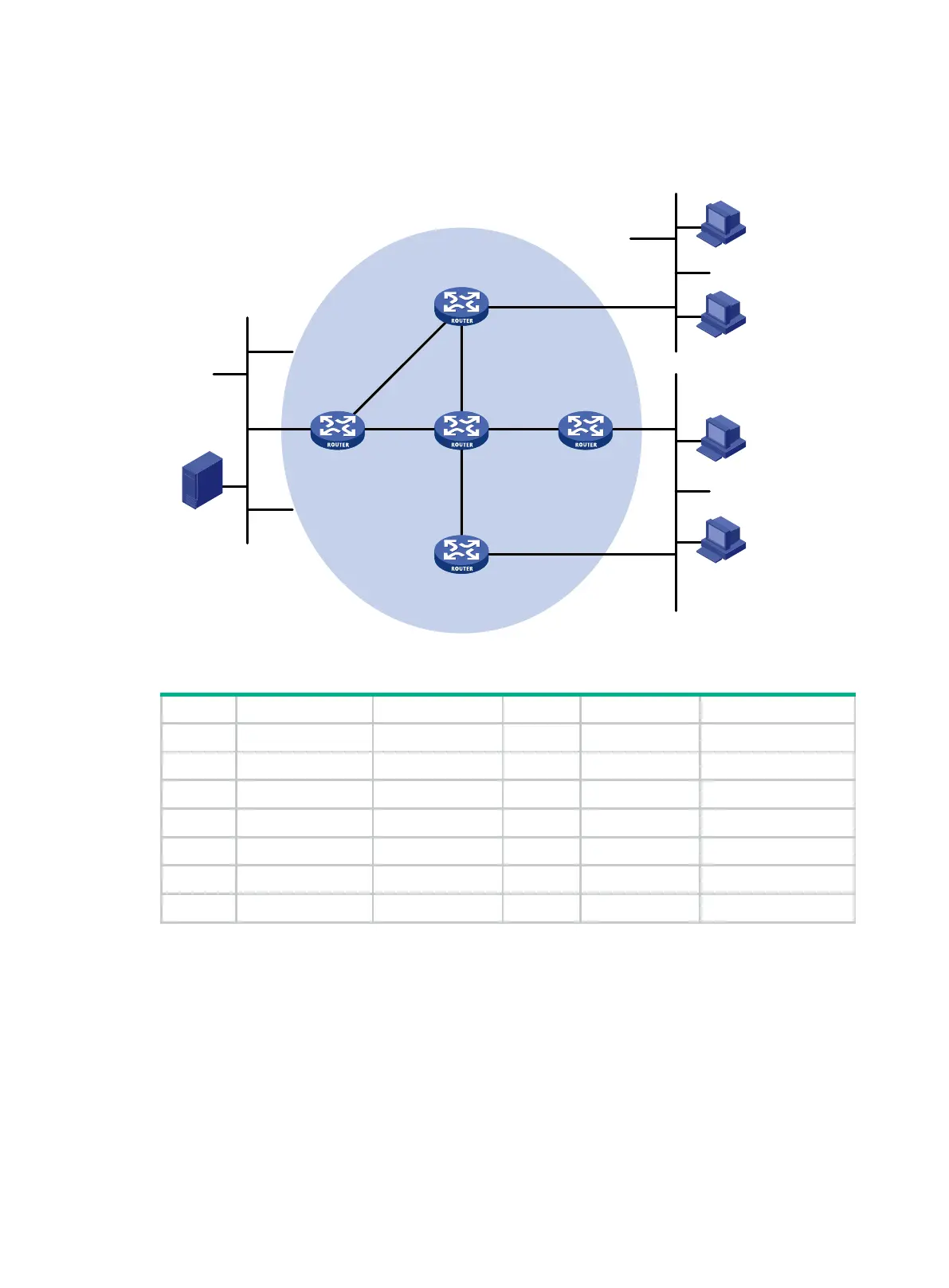

Figure 48 Network diagram
Table 12 Interface and IP address assignment
Device
Interface
IP address
Device
Interface
IP address
Router A GE1/0/1 10.110.1.1/24 Router D GE1/0/1 10.110.5.1/24
Router A GE1/0/2 192.168.1.1/24 Router D GE1/0/2 192.168.1.2/24
Router A GE1/0/3 192.168.9.1/24 Router D GE1/0/3 192.168.4.2/24
Router B GE1/0/1 10.110.2.1/24 Router E GE1/0/1 192.168.3.2/24
Router B GE1/0/2 192.168.2.1/24 Router E GE1/0/2 192.168.2.2/24
Router C GE1/0/1 10.110.2.2/24 Router E GE1/0/3 192.168.9.2/24
Router C GE1/0/2 192.168.3.1/24 Router E GE1/0/4 192.168.4.1/24
Configuration procedure
1. Assign an IP address and subnet mask to each interface, as shown in Figure 48. (Details not
shown.)
2. Configure OSPF on the routers in the PIM-SSM domain. (Details not shown.)
3. Enable IP multicast routing, IGMP and PIM-SM:
# On Router A, enable IP multicast routing.
<RouterA> system-view
[RouterA] multicast routing
[RouterA-mrib] quit
# Enable IGMPv3 on GigabitEthernet 1/0/1 (the interface that connects to the stub network).
