HP Officejet Pro X476dn

●
Right cross brace.
●
Top cap assembly.
2.
Install the nozzle “helmet” on the printbar to protect the ink nozzles. Not needed for recyling & disposal.

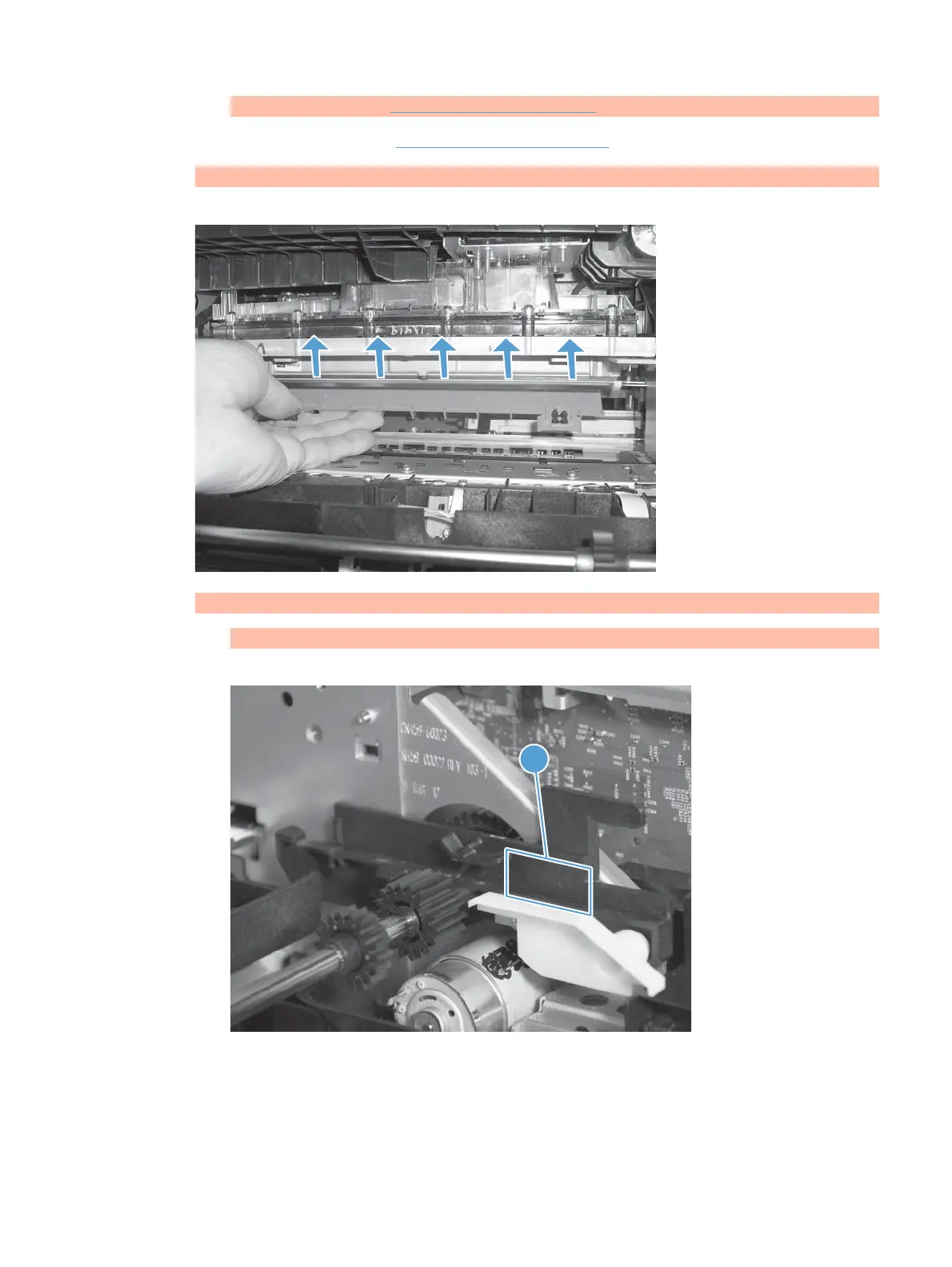

Figure 1-87 Remove the printbar (1 of 12)
3. Install the printbar dolly.
a.
Locate the service sled guides (callout 1).
Figure 1-88 Remove the printbar (2 of 12)
1
