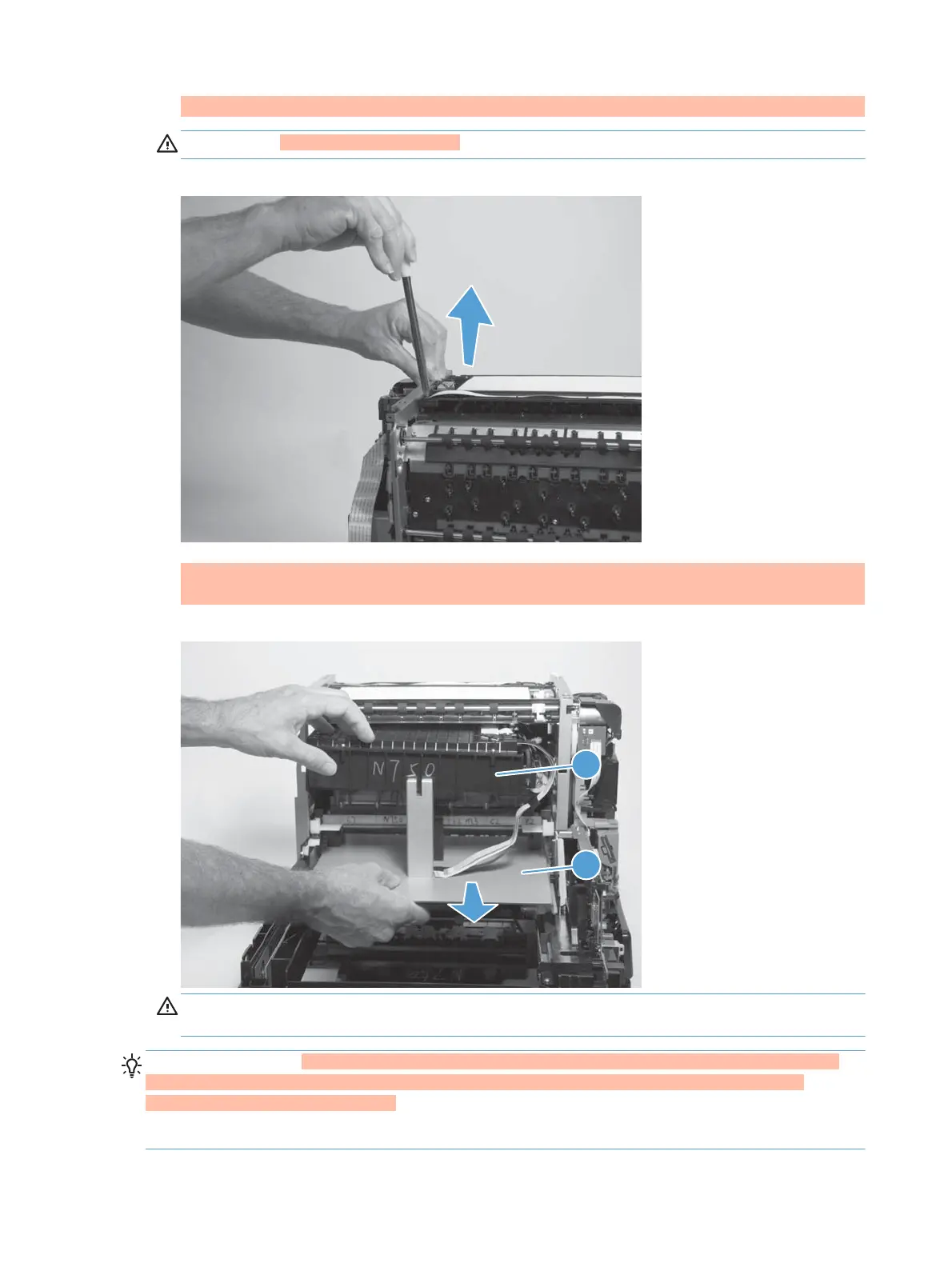

11. Pull each lift guide up to remove.
CAUTION: The lift guides are greasy.
Figure 1-97 Remove the printbar (11 of 12)
12. Slide the dolly (callout 1) forward, away from the product, to remove the printbar assembly
(callout 2).
Figure 1-98 Remove the printbar (12 of 12)
2
1
CAUTION: Use extreme care when handling the printbar while it is out of the product. It can be
damaged easily.
