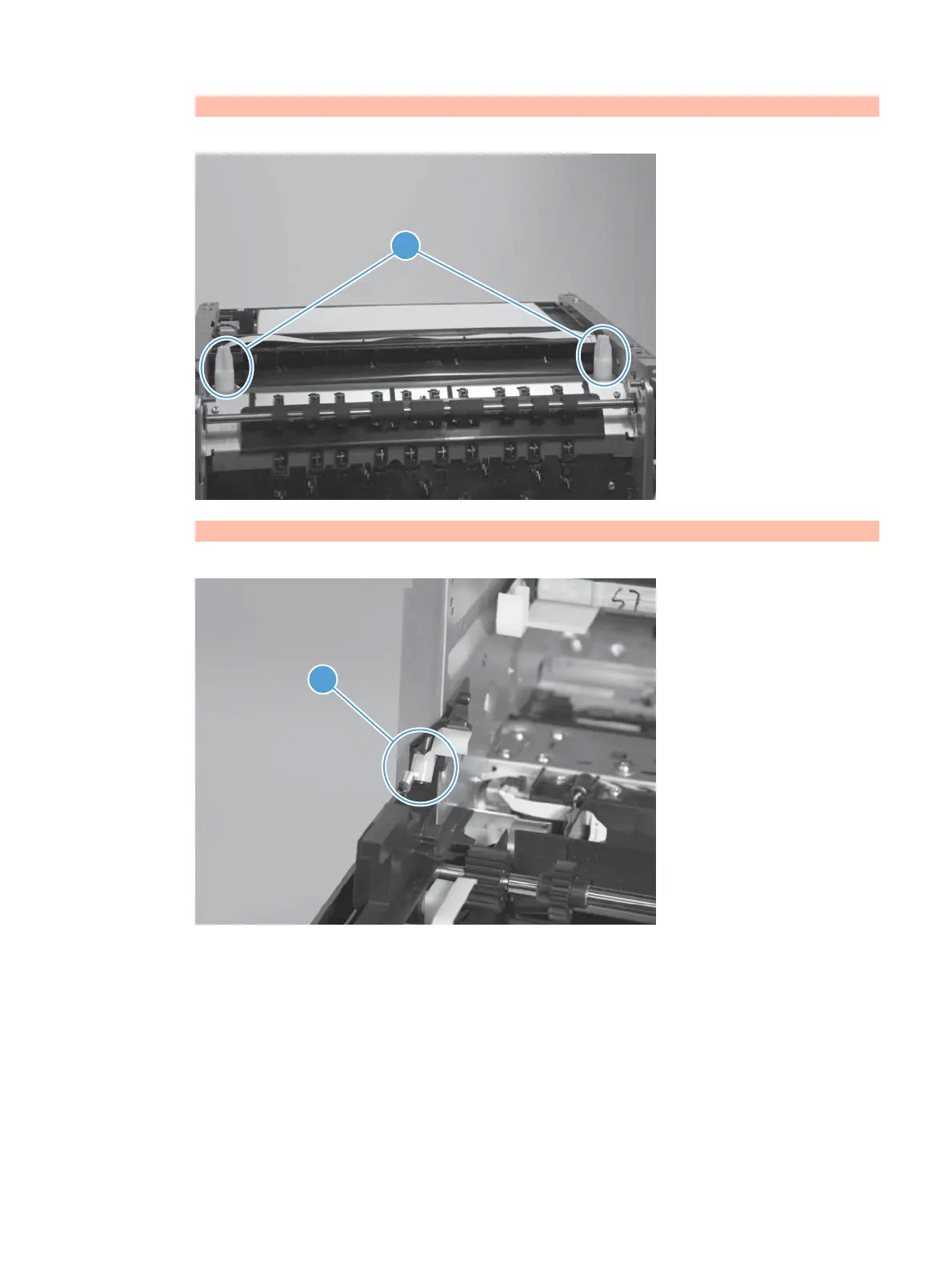

9. Locate both lift guides (callout 1) on the top left of the product.
Figure 1-95 Remove the printbar (9 of 12)
1
10. Hold back the latch (callout 1).
Figure 1-96 Remove the printbar (10 of 12)
1
