14

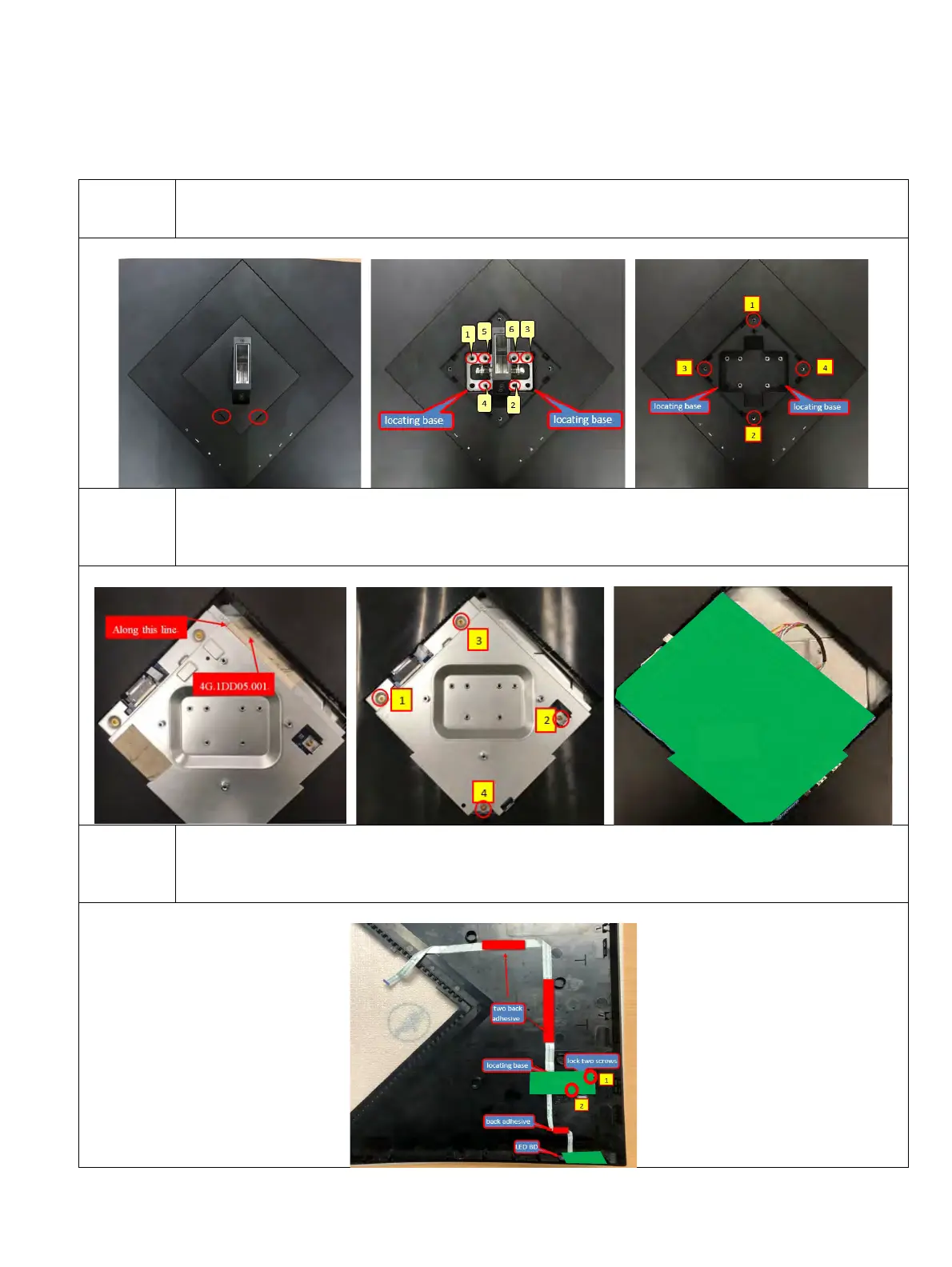

Disassembly procedure
Rear Cover
1) Disassemble Hinge Cover from the Hinge as the picture 1.
2) Unlock 6 screws and disassemble Hinge from the RC Cover as the picture 2.
3) Unlock 4 screws and disassemble RC Cover from the Top SHD as the picture 3.
PICTURE 1 PICTURE 2 PICTURE 3
1) Tear off the wide and narrow conduct tapes from the Top SHD as the picture 1.
2) Unlock 4 screws and disassemble Top SHD from the Main BD as the picture 2.
3) Tear off LVDS, lamp wire and Ctrl BD cable from the Main BD as the picture 3.
4) Disassemble Main BD from the RC and disassemble RC from the monitor.
PICTURE 1 PICTURE 2 PICTURE 3
1) Unlock 2 screws and disassemble Ctrl BD from the RC as the picture 1.
2) Disassemble LED BD from the RC as the picture 1.
3) Pull out the LED BD cable and Ctrl BD cable from the RC.
4) Pull out the LED BD from the Ctrl BD.
To Next Page
