Illustrated parts catalog

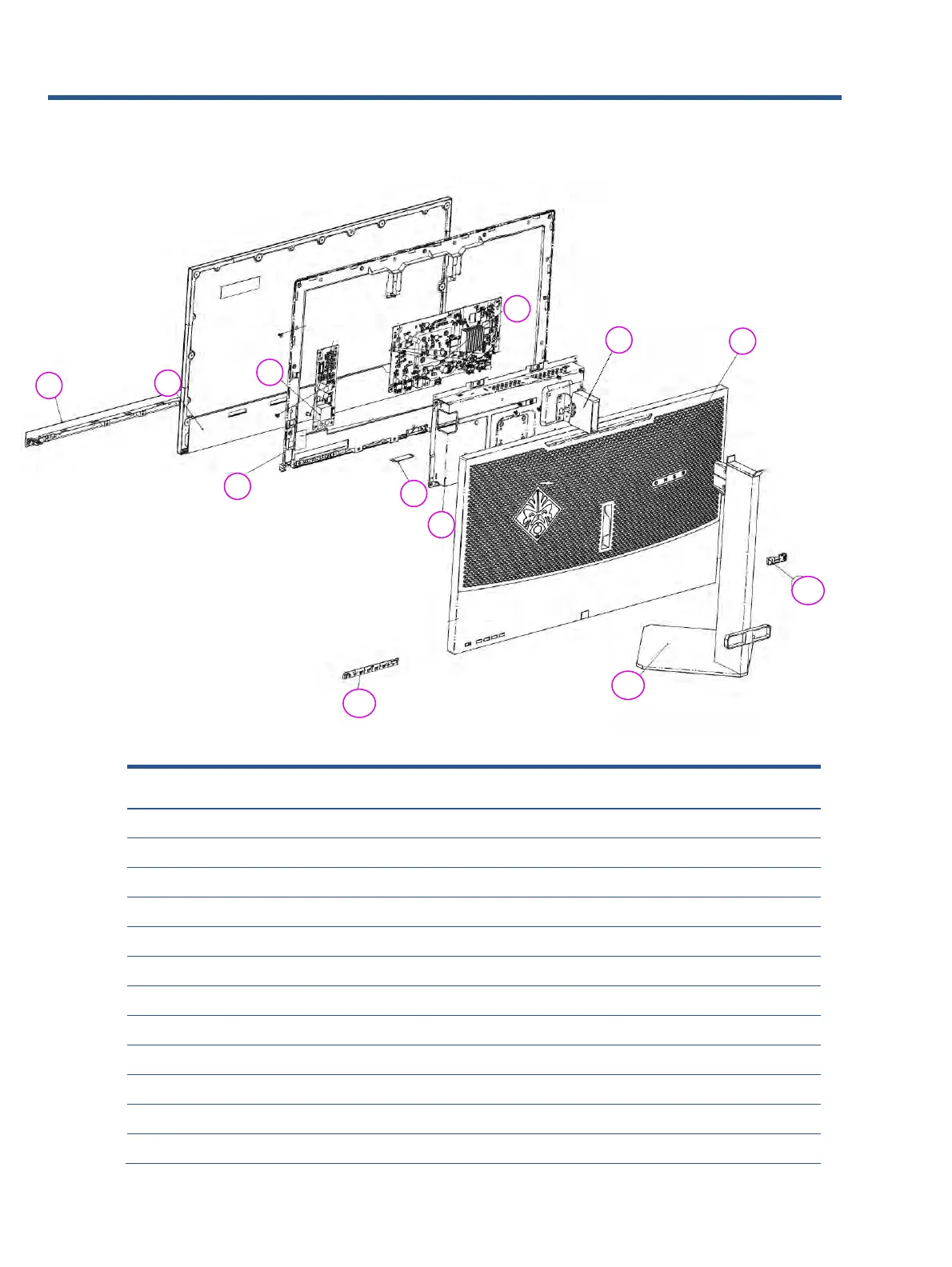

To identify the monitor major components, use this illustration and table.
Table 2-1: Monitor major components and their descriptions
Item Description Qty
1
ASSY CHIN OMEN X 27
1
2
PANEL
1
3 MID FRAME 1
4
PCBA LED DRV BD
1
5 PCBA IF BD 1
6
PCBA LED BD
1
7 ASSY SHD 1
8
ASSY HINGE
1
9 ASSY RC JAWA OMEN X 27 1
10
PCBA AUDIO BD
1
11 PCBA CTRL BD 1
12
ASSY STAND OMEN X 27
1
2
3
12
11
10
9
8
7
4
5
1
6
