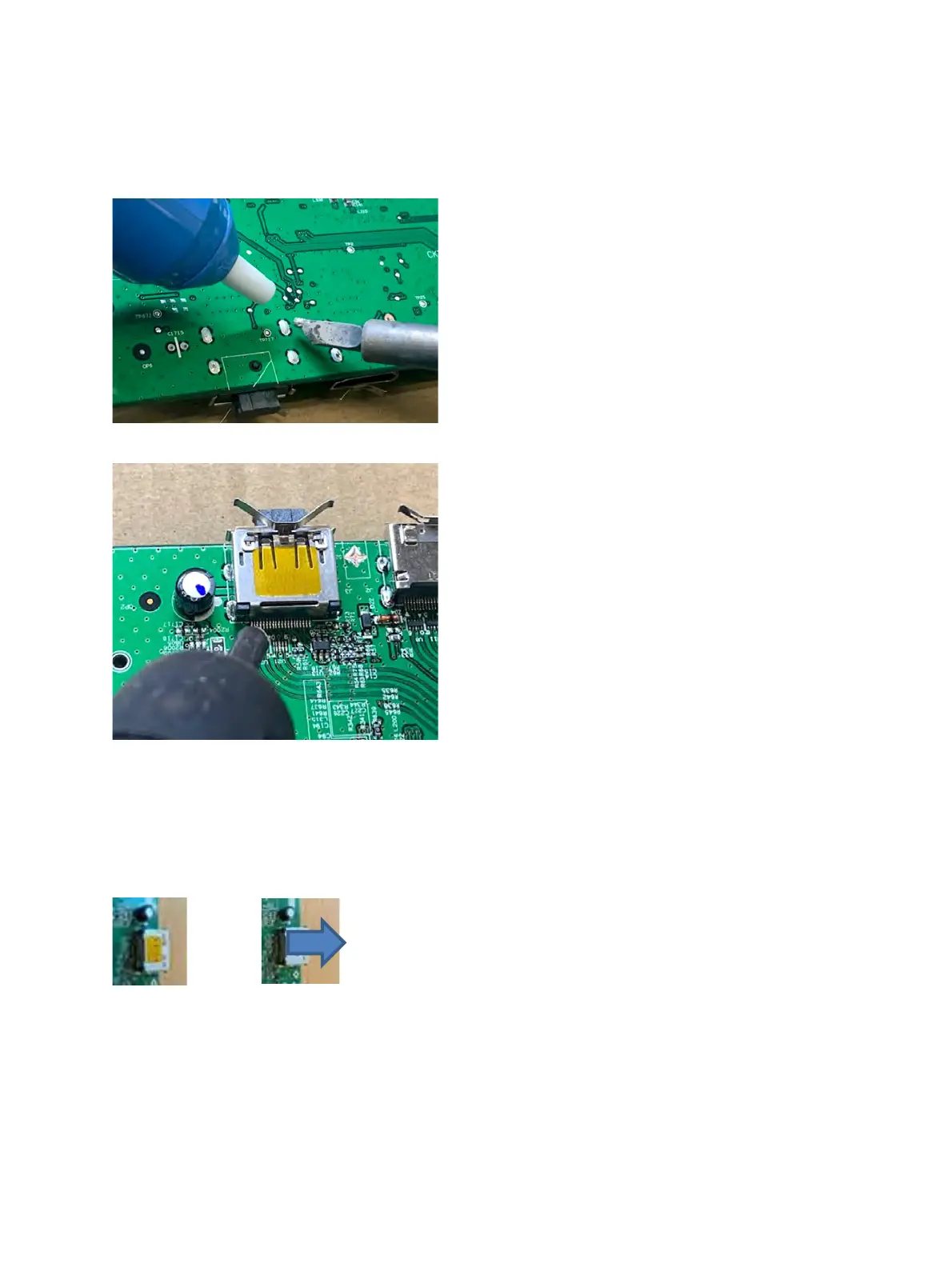

DP Connector repair- J3
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible
from one of the pin.
2) Use a hot air gun to melt the solder on the pins
3) Lift J3 from the PCB
4) Place new component on the location, and must check it can match PCB footprint
5) Soldering the new component by solder iron
6) Tear off the yellow tape on the DP connector, so that it can contact to the gasket, EMI
will be effective.
7). Please must stick a gasket on the Shielding. Find the procedure on page 22.

HP OMEN X 27 Specifications

General

Cables included	DisplayPort, HDMI, USB Type-A to USB Type-B
3D	No
Panel type	TN
Pixel pitch	0.233 x 0.233 mm
Screen shape	Flat
Backlight type	LED
Display diagonal	27 \
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	240 Hz
Viewable size, vertical	335.6 mm
Viewing angle, vertical	160 °
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	596.7 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 2560 x 1440
Product color	Black
Country of origin	China
Market positioning	Gaming
Tilt angle range	-5 - 23 °
On Screen Display (OSD)	Yes
HP segment	Home
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	65 W
Power consumption (off)	0.29 W
Annual energy consumption	66 kWh
Power consumption (standby)	0.45 W
Power consumption (typical)	30 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	272.5 mm
Package width	557.5 mm
Package height	489.6 mm
Package weight	10600 g
Depth	330.6 mm
Height	98.7 mm

Weight and Dimensions

Depth (with stand)	53.36 mm
Width (with stand)	61.36 mm
Height (with stand)	27.25 mm
Weight (with stand)	7100 g
Depth (without stand)	10.04 mm
Width (without stand)	613.6 mm
Height (without stand)	37.36 mm
Weight (without stand)	- g
