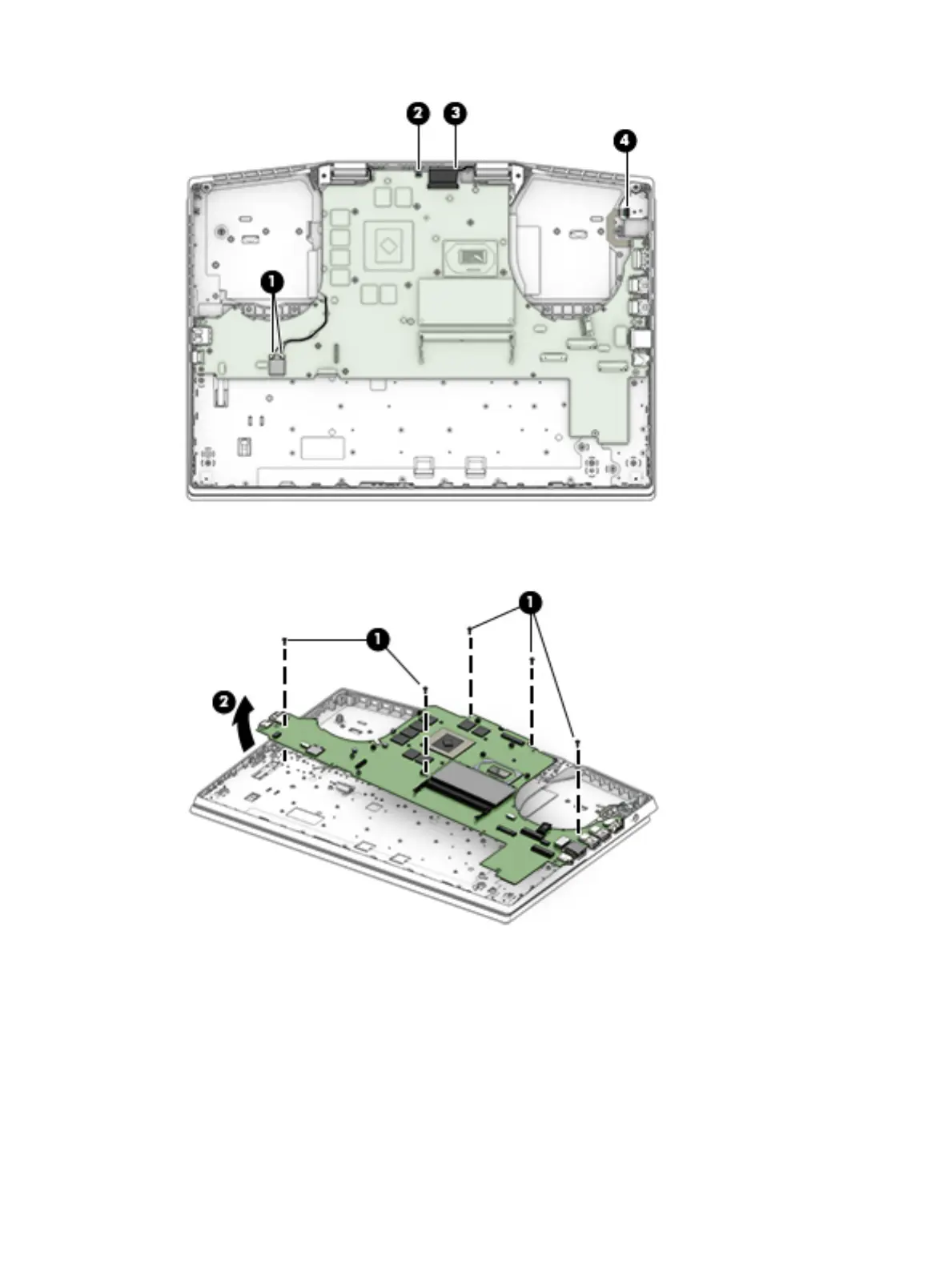

2. Remove the ve Phillips M2.0 × 5.5 screws (1) that secure the system board to the computer.

3. Lift the left side of the system board (2).

4. Rotate the system board upside down (1), and then disconnect the keyboard cable from the ZIF

connector on the keyboard (2).

42 Chapter 6 Removal and replacement procedures for authorized service provider parts
