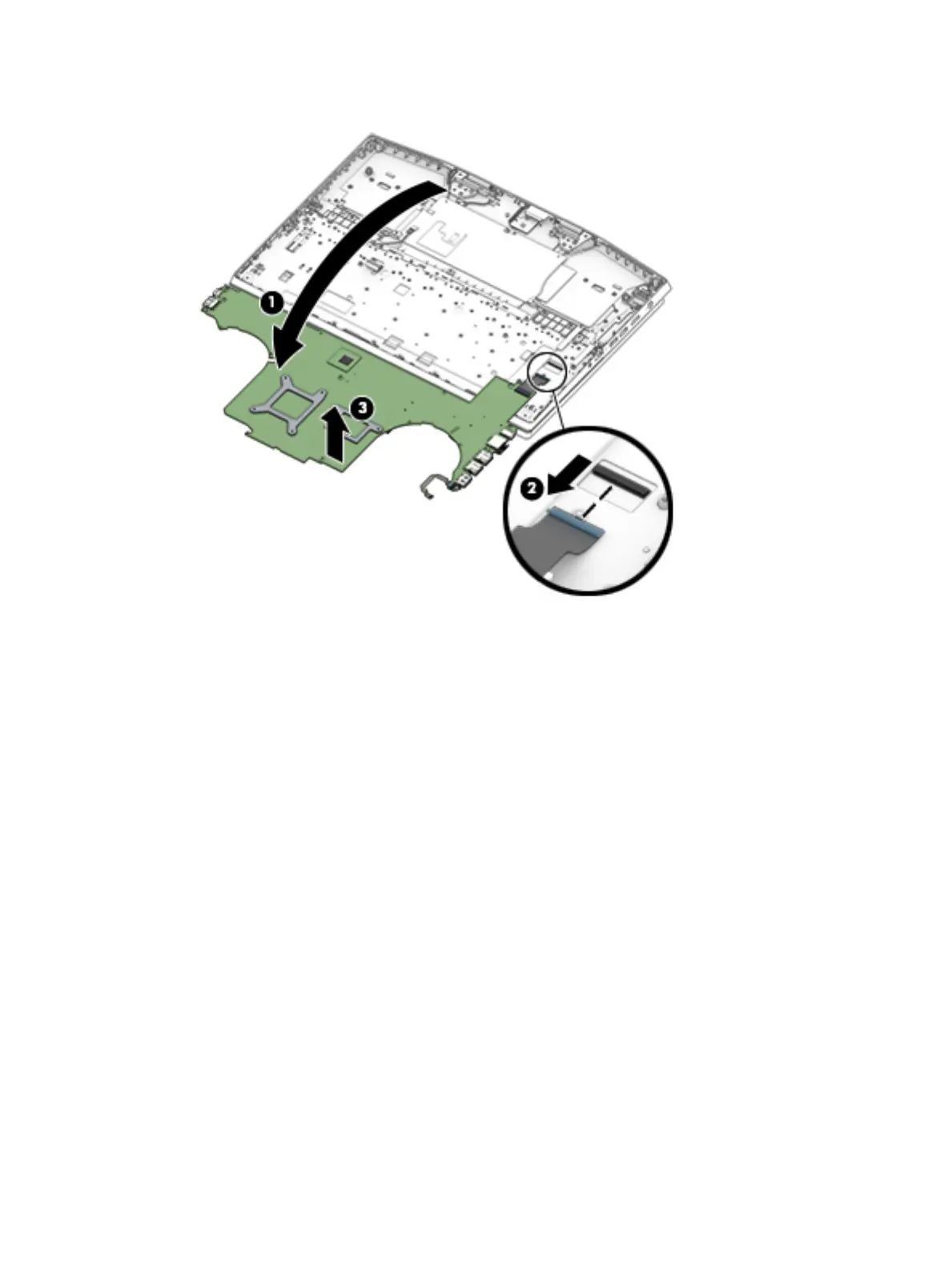

5.
Remov
e the system boar
d from the c
omputer
(3)
.
Rev
erse this procedur
e to install the sys
tem boar
d.
Component r
eplacement pr
ocedure
s
43
52
54
Table of Contents
Default Chapter
7
Table of Contents
7
1 Product Description
11
2 Getting to Know Your Computer
15
Right Side
15
Left Side
16
Display
17
Keyboard Area
18
Touchpad
18
Lights
19
Power Button and Second Screen
20
Special Keys
21
Bottom
22
Labels
23
HP OMEN Command Center
24
Using the Second Screen
25
3 Illustrated Parts Catalog
26
Computer Major Components
26
Cables
28
Display Assembly Subcomponents
29
Miscellaneous Parts
30
4 Removal and Replacement Procedures Preliminary Requirements
31
Tools Required
31
Service Considerations
31
Plastic Parts
31
Cables and Connectors
31
Drive Handling
32
Workstation Guidelines
32
Electrostatic Discharge Information
32
Generating Static Electricity
33
Preventing Electrostatic Damage to Equipment
33
Personal Grounding Methods and Equipment
34
Grounding the Work Area
34
Recommended Materials and Equipment
34
Packaging and Transporting Guidelines
35
5 Removal and Replacement Procedures for Customer Self-Repair Parts
36
Component Replacement Procedures
36
Preparation for Disassembly
36
Bottom Cover
37
Solid-State Drive and Optane Memory Module
39
Memory Module
40
6 Removal and Replacement Procedures for Authorized Service Provider Parts
41
Component Replacement Procedures
41
Thermal Material
41
Battery and Speakers
42
Heat Sink/Fan Assembly
45
Second Display Transfer Board
48
Power Connector Cable
49
Power Button Board
50
System Board
51
Network Connector Door
54
Thermal Shield (CU Plate)
55
IR Sensor Board
56
Touchpad Cable
57
Second Display Panel
58
Display Assembly
61
Keyboard/Top Cover
69
7 Using Setup Utility (BIOS)
70
Starting Setup Utility (BIOS)
70
Updating Setup Utility (BIOS)
70
Determining the BIOS Version
70
Downloading a BIOS Update
71
8 Using HP PC Hardware Diagnostics
72
Using HP PC Hardware Diagnostics Windows (Select Products Only)
72
Downloading HP PC Hardware Diagnostics Windows
72
Downloading the Latest HP PC Hardware Diagnostics Windows Version
73
Downloading HP Hardware Diagnostics Windows by Product Name or Number (Select Products Only)
73
Installing HP PC Hardware Diagnostics Windows
73
Using HP PC Hardware Diagnostics UEFI
73
Starting HP PC Hardware Diagnostics UEFI
74
Downloading HP PC Hardware Diagnostics UEFI to a USB Flash Drive
74
Downloading the Latest HP PC Hardware Diagnostics UEFI Version
74
Downloading HP PC Hardware Diagnostics UEFI by Product Name or Number (Select Products Only)
74
Using Remote HP PC Hardware Diagnostics UEFI Settings (Select Products Only)
75
Downloading Remote HP PC Hardware Diagnostics UEFI
75
Downloading the Latest Remote HP PC Hardware Diagnostics UEFI Version
75
Downloading Remote HP PC Hardware Diagnostics UEFI by Product Name or Number
75
Customizing Remote HP PC Hardware Diagnostics UEFI Settings
75
9 Backing Up, Restoring, and Recovering
77
Backing up Information and Creating Recovery Media
77
Using Windows Tools
77
Using the HP Cloud Recovery Download Tool to Create Recovery Media (Select Products Only)
77
Restoring and Recovery
78
Restoring, Resetting, and Refreshing Using Windows Tools
78
Recovering Using HP Recovery Media
78
Changing the Computer Boot Order
78
10 Specifications
79
11 Power Cord Set Requirements
80
Requirements for All Countries
80
Requirements for Specific Countries and Regions
81
12 Recycling
83
Index
84
