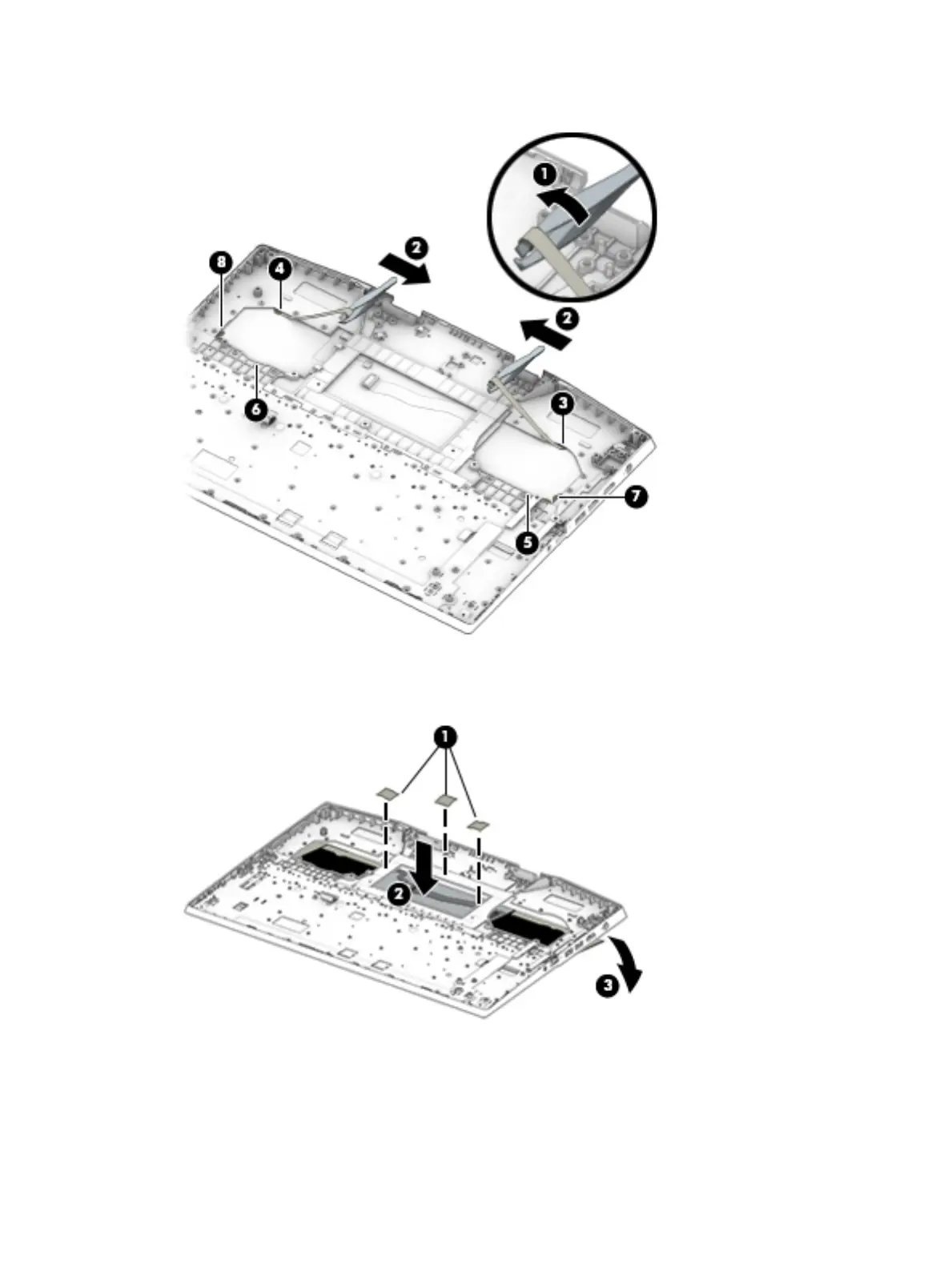

10. Pull the tape out from the far of the right side of the panel (8).
11. Remove the three pieces of conductive tape (1) that secure the display to the computer.
12. Push the display downward (2), and then rotate the display o the computer (3).
Reverse this procedure to install the second display panel.
50 Chapter 6 Removal and replacement procedures for authorized service provider parts
