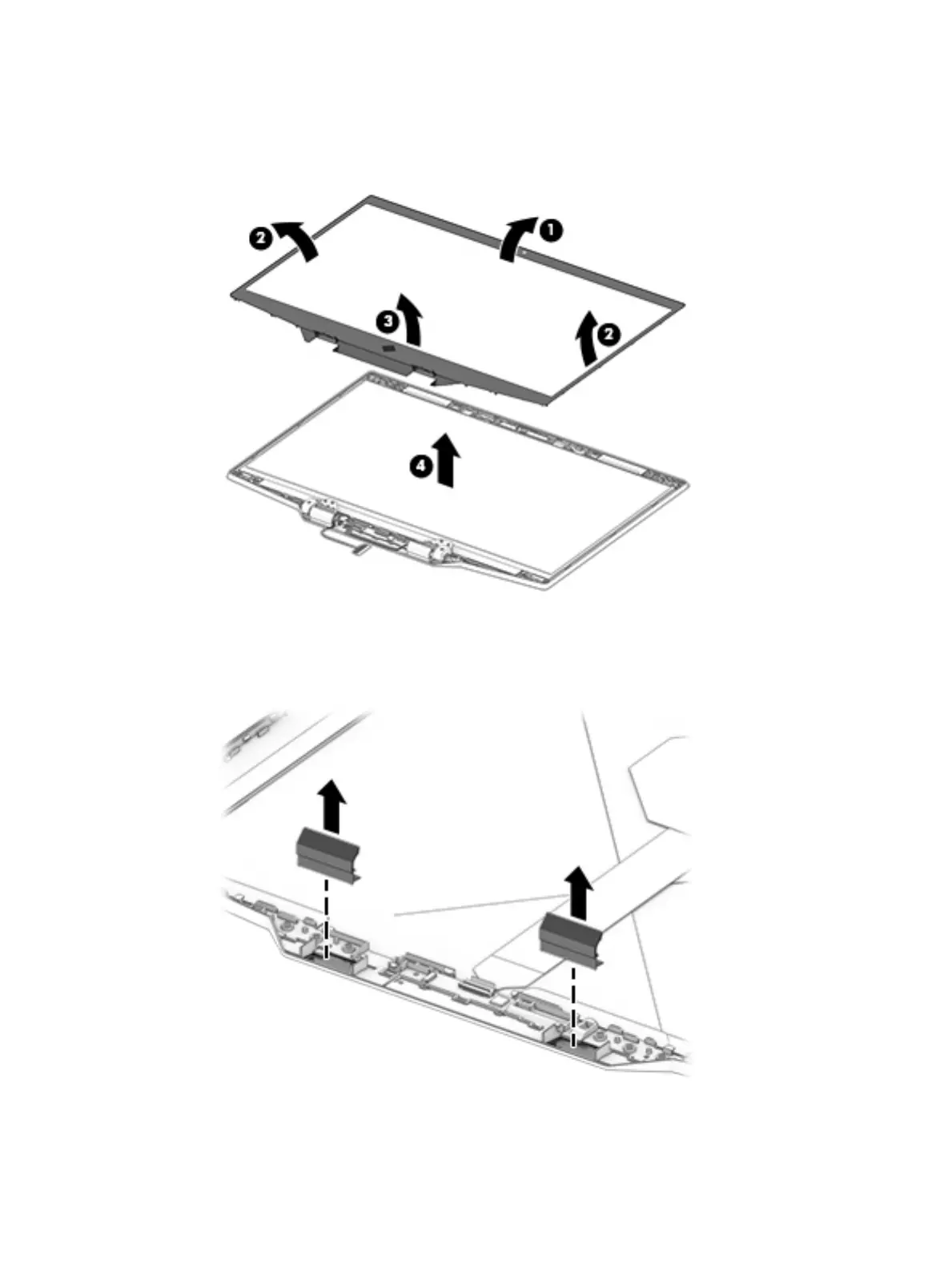

d. Remove the display bezel (4).
The display bezel is available as spare part number L57011-001.
Bezel adhesive tape is available as spare part number L57048-001.
6. If it is necessary to remove the hinge covers:
▲ Pull the hinge covers straight up and o the display back cover.
The hinge covers are available as spare part number L66225-001.
7. If it is necessary to remove the display panel:
52 Chapter 6 Removal and replacement procedures for authorized service provider parts
