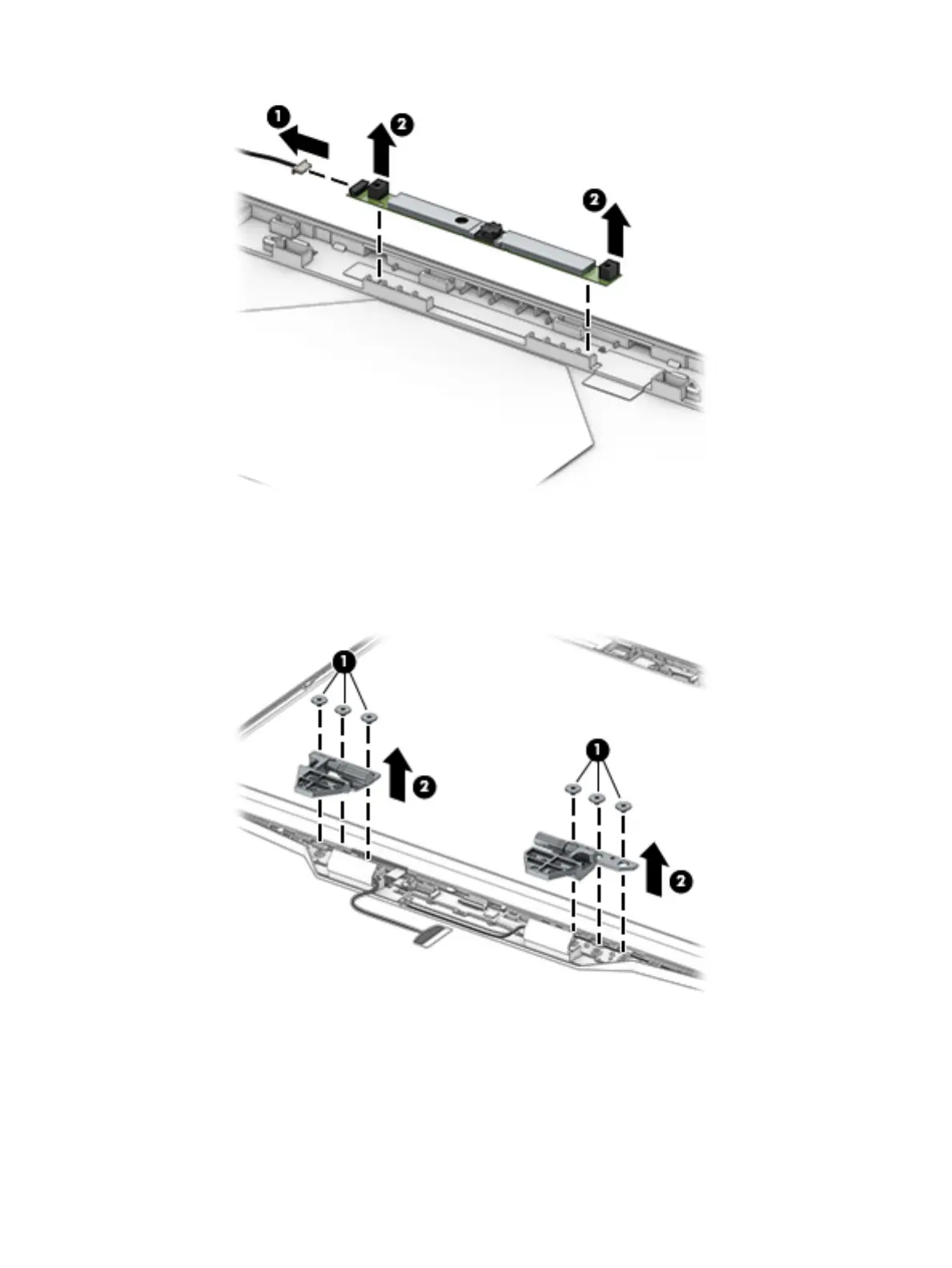

9. If it is necessary to remove the display hinges and brackets:
a. Remove the three Phillips M2.5 × 2.5 screws (1) from each hinge.
b. Remove the hinges from the display back cover (2).
The display hinges are available as spare part number L57019-001.
c. Remove the three Phillips M2.0 × 2.5 screws (1) from each bracket.
Component replacement procedures 55
