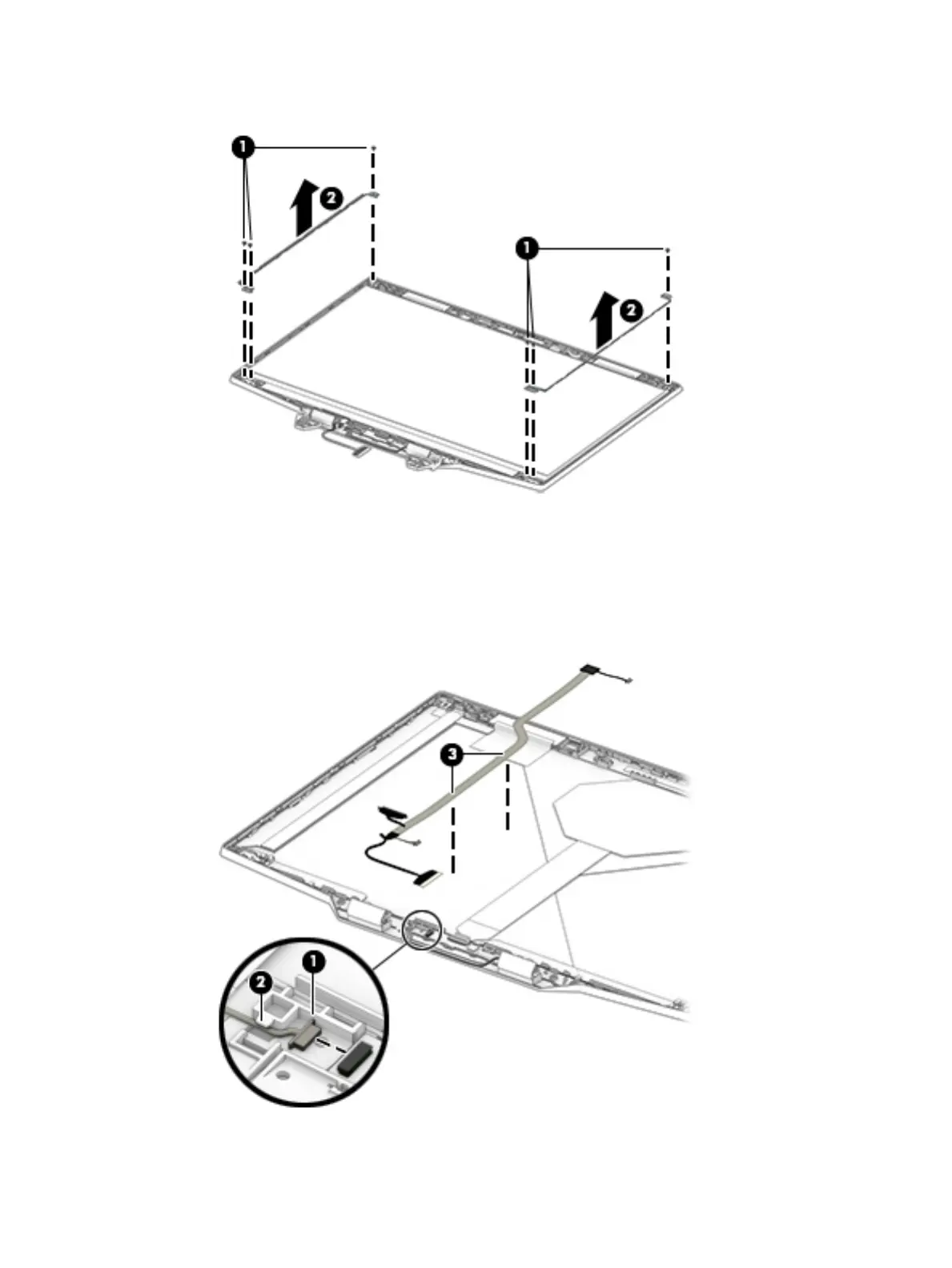

d. Remove the hinge brackets from the display back cover (2).
10. If it is necessary to remove the display panel cable:
a. Disconnect the cable from the display backlight board at the bottom of the display back cover (1),
and then remove the cable from the clip (2).
b. Peel the cable from the inside of the display back cover (3).
The display cable is available as spare part number L57016-001.
56 Chapter 6 Removal and replacement procedures for authorized service provider parts
