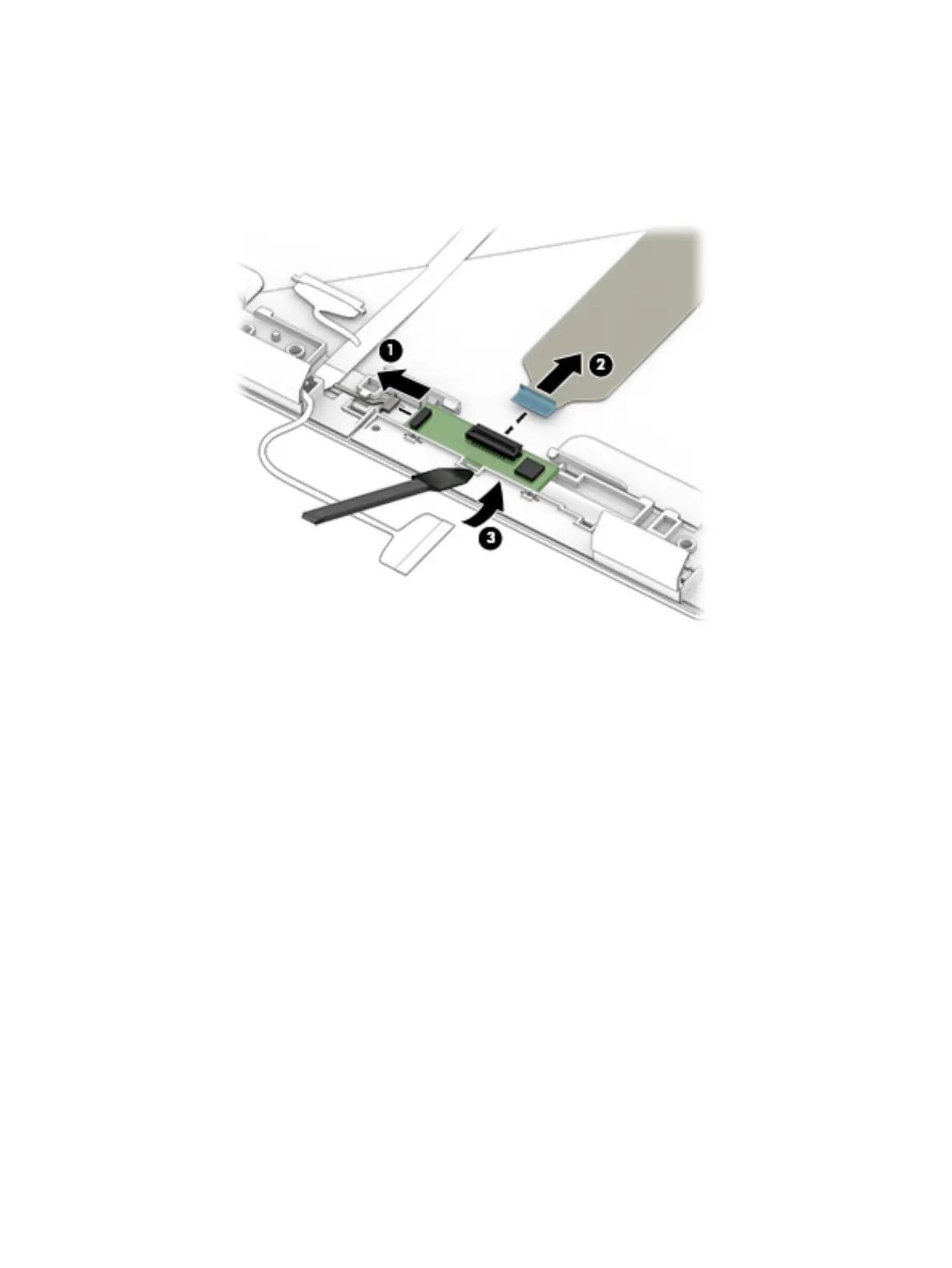

11. If it is necessary to remove the display backlight board:
a. Disconnect the display cable (1) and backlight module cable (2) from the board.
b. Use a tool to remove the board from the display LED cover (3).
The display LED board is available as spare part number L57022-001.
12. If it is necessary to remove the wireless antennas:
a. Peel the antennas o the top of the display back cover (1).
Component replacement procedures 57
