HP P2000 Installation Instructions

Consider the following when cabling HP P2000 G3 MSA
Systems:
• P2000 G3 FC/iSCSI MSA System LUNs may be
presented through either the iSCSI or FC host ports;
presenting the same LUN through both protocols is
not supported.
• P2000 G3 MSA System Fibre Channel and iSCSI
controller ports can both be used for connecting to
hosts as well as for replication purposes.
• P2000 G3 10GbE iSCSI MSA Systems must connect
to 10GbE-enabled devices (server, switch, or
interconnect).
Direct-connect configurations
For direct-connect configurations, connect cables from the
P2000 G3 MSA controller to the host as shown in the
following illustrations.
Any number or combination of LUNs can be shared
among a maximum of 64 host ports, as long as the total
adds up to no more than 512 LUNs per P2000 G3 MSA
System.
Consider the following about images in this section:
• These figures show examples of simple, common
cabling configurations. Other cabling configurations
exist.
• These figures show generic representations of servers.

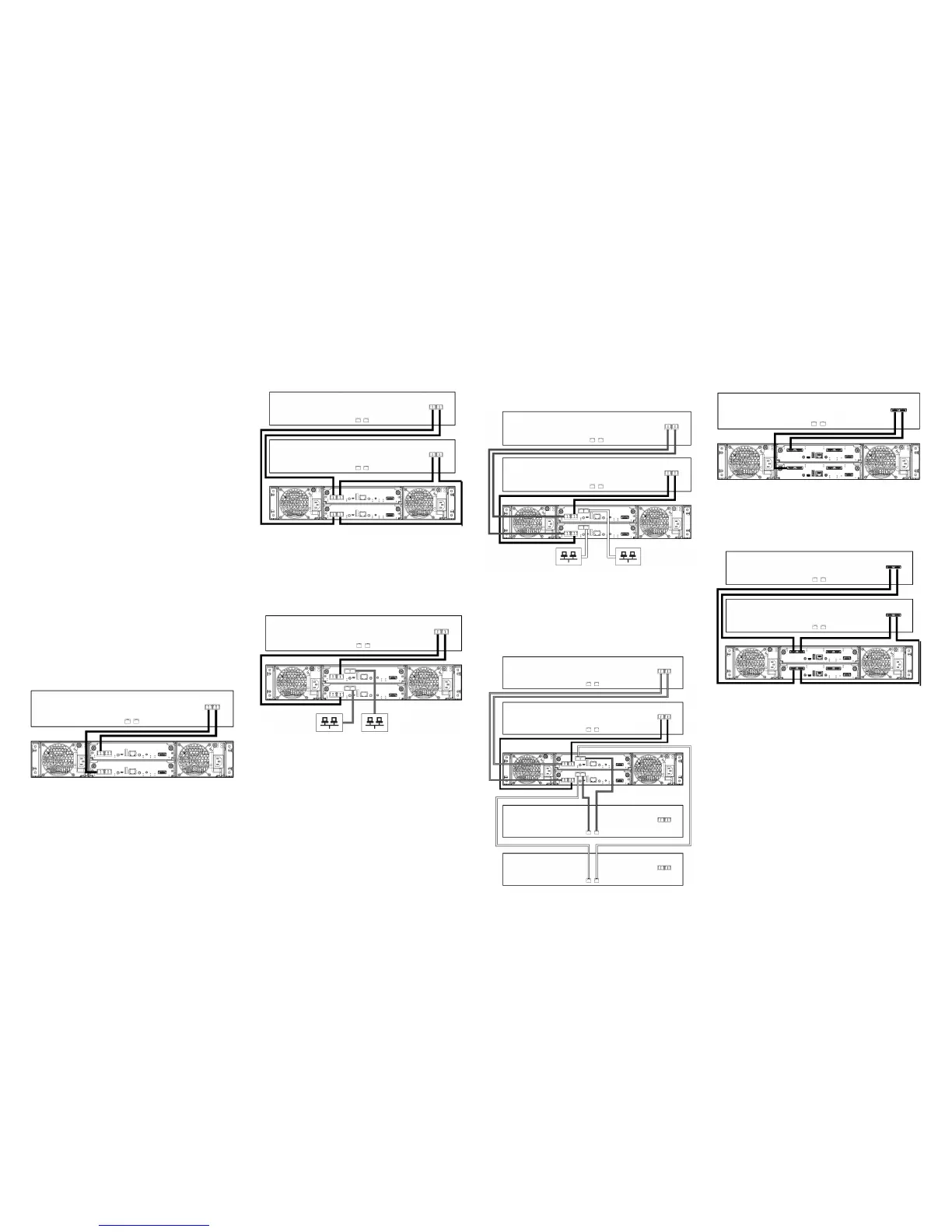

P2000 G3 FC MSA connected to one server
Connecting a P2000 G3 FC MSA dual-controller array
enclosure to one server in a dual-path configuration
requires two (2) Fibre Channel cables.
P2000 G3 FC MSA connected to two servers
Connecting a P2000 G3 FC MSA dual-controller array
enclosure to two servers in a dual-path configuration
requires four (4) Fibre Channel cables.
P2000 G3 Combo FC/iSCSI MSA connected to one server
Connecting a P2000 G3 Combo FC/iSCSI MSA
dual-controller array enclosure to one server in a dual-path
configuration requires two (2) Fibre Channel cables
connected to the server and two Ethernet cables connected
to the network for replication.
P2000 G3 Combo FC/iSCSI MSA connected to two servers
Connecting a P2000 G3 Combo FC/iSCSI MSA
dual-controller array enclosure to two servers in a dual-path
configuration requires four (4) Fibre Channel cables
connected to the servers and two (2) Ethernet cables
connected to the network for replication.
P2000 G3 Combo FC/iSCSI MSA connected to four servers
Connecting a P2000 G3 Combo FC/iSCSI MSA
dual-controller array enclosure to four servers in a
dual-path configuration requires four (4) Fibre Channel
cables connected to the servers and four (4) Ethernet
cables connected to the network for replication.
P2000 G3 SAS MSA connected to one server
Connecting a P2000 G3 SAS MSA dual-controller array
enclosure to one server in a dual-path configuration
requires two (2) SAS cables.
P2000 G3 SAS MSA connected to two servers
Connecting a P2000 G3 SAS MSA dual-controller array
enclosure to two servers in a dual-path configuration
requires four (4) SAS cables.
Page 3
