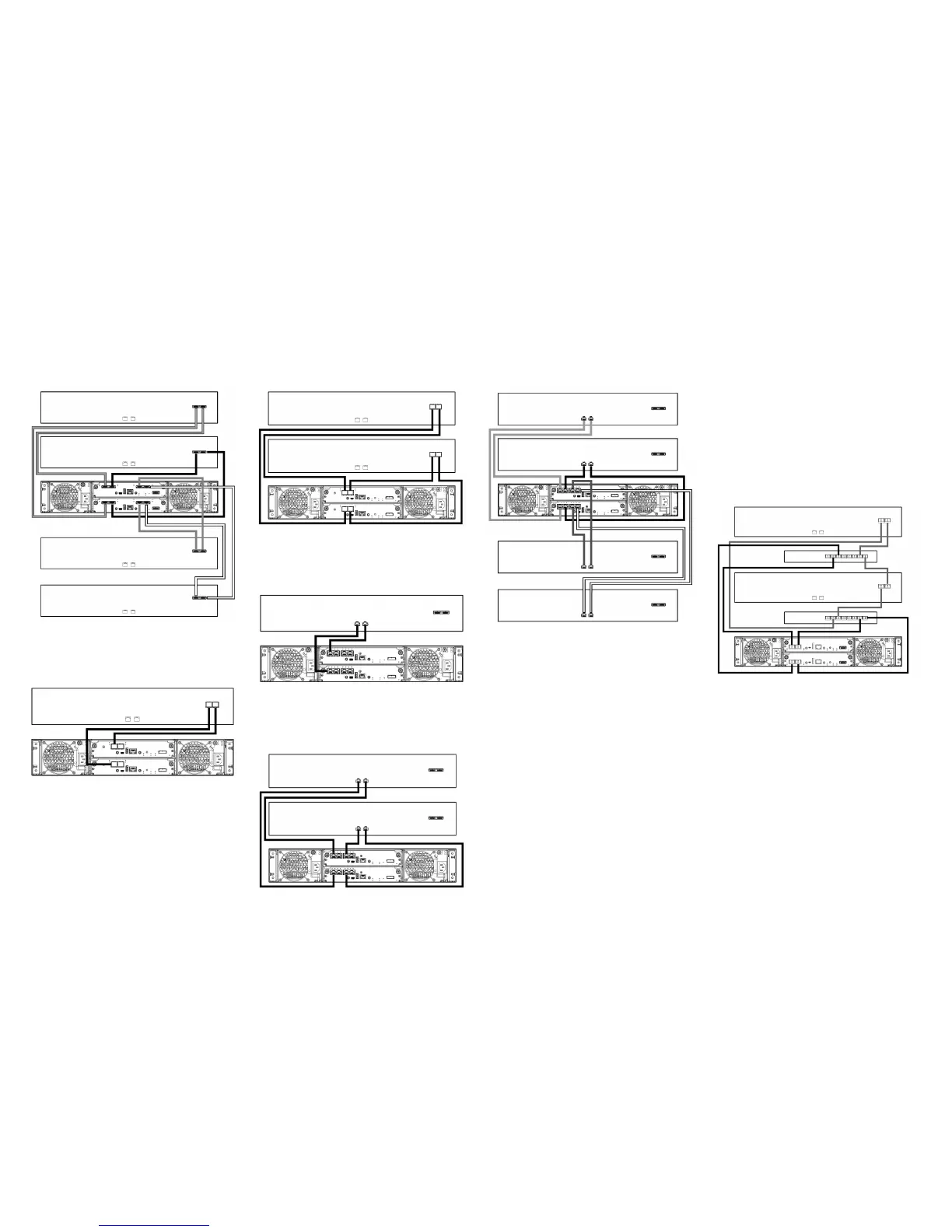

P2000 G3 SAS MSA connected to four servers
Connecting a P2000 G3 SAS MSA dual-controller array
enclosure to four servers in a dual-path configuration
requires eight (8) SAS cables.
P2000 G3 10GbE iSCSI MSA connected to one server
Connecting a P2000 G3 10GbE iSCSI MSA
dual-controller array enclosure to one server in a dual-path
configuration requires two (2) 10GbE SFP+ connections.
P2000 G3 10GbE iSCSI MSA connected to two servers
Connecting a P2000 G3 10GbE iSCSI MSA
dual-controller array enclosure to two servers in a dual-path
configuration requires four (4) 10GbE SFP+ connections.
P2000 G3 iSCSI MSA connected to one server
Connecting a P2000 G3 iSCSI MSA dual-controller array
enclosure to one server in a dual-path configuration
requires two (2) Ethernet cables connected to the server.
P2000 G3 iSCSI MSA connected to two servers
Connecting a P2000 G3 iSCSI MSA dual-controller array
enclosure to two servers in a dual-path configuration
requires four (4) Ethernet cables connected to the server.
P2000 G3 iSCSI MSA connected to four servers
Connecting a P2000 G3 iSCSI MSA dual-controller array
enclosure to four servers in a dual-path configuration
requires eight (8) Ethernet cables connected to the server.
Switch-connect configurations
For switch-connect configurations, connect cables from
the P2000 G3 MSA controller to the switch ports, and
from switch ports to data hosts.
Consider the following about images in this section:
• These figures show simple, common cabling
configurations. Other cabling configurations exist.
• These figures show generic representations of servers
and switches.
P2000 G3 FC MSA connected to two switches/two servers
Connecting a P2000 G3 FC MSA dual-controller array
enclosure to two switches/two servers in a dual-path
configuration requires eight (8) Fibre Channel cables.
