HP P6000 Installation Instructions

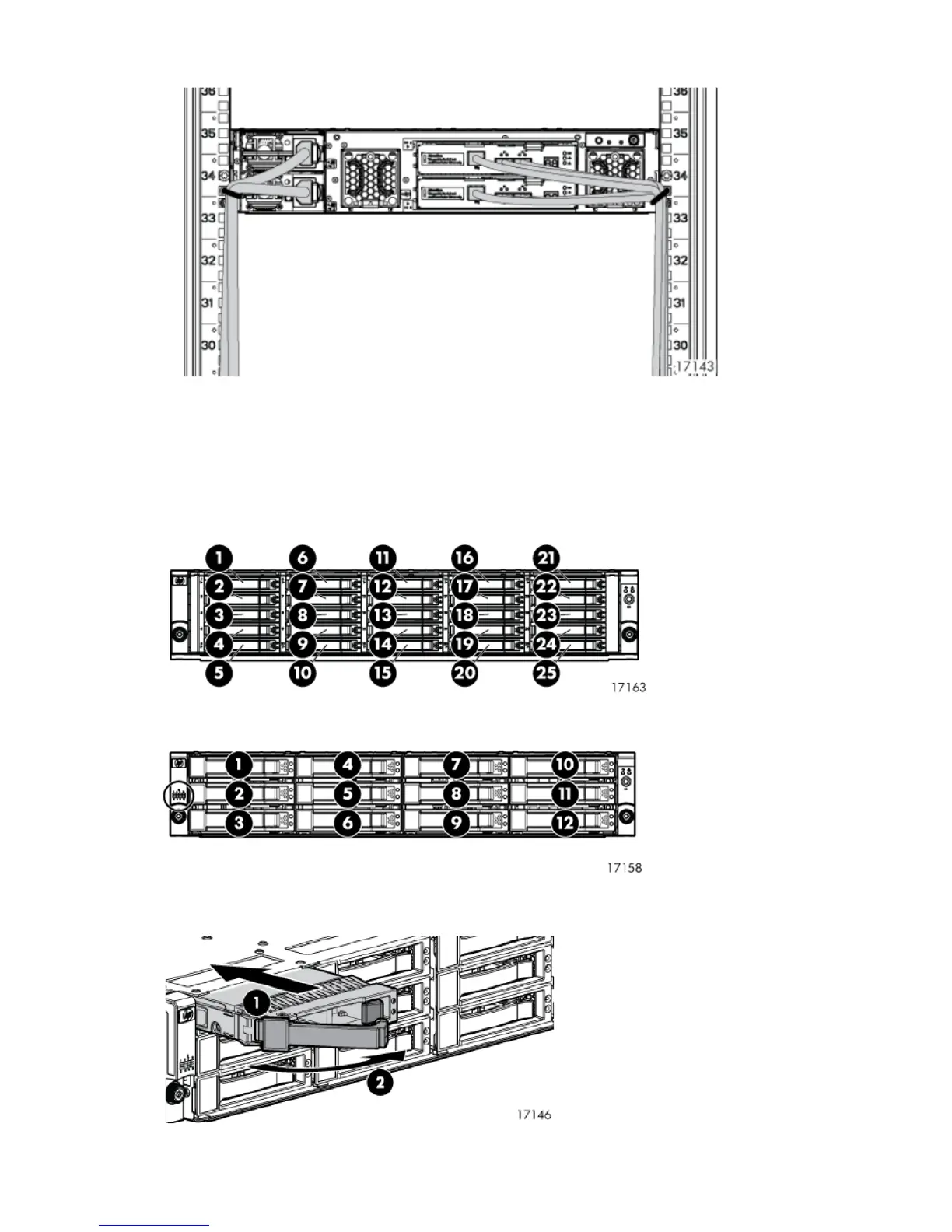

Figure 4 Installing tie wraps and routing cables
3. Populate the enclosure with available disk drives (not included with this kit). Start with the lowest
number in for the M6625, and Figure 7 (page 6) for the M6612, and continue in order until
you have inserted the desired number. If installing multiple disk enclosures, balance the quantity
and sizes of disk drives between the enclosures as evenly as possible.
Figure 5 M6625 disk drive numbering
Figure 6 M6612 disk drive numbering
Figure 7 Inserting a disk drive
6 Installing the disk enclosure

HP P6000 Specifications

General

RAID Levels Supported	0, 1, 5, 6, 10
Form Factor	Rack-mountable
Hard Drive Form Factor	2.5", 3.5"
Drive Types Supported	SAS, SSD, SATA
Redundancy	Redundant power supplies
Host Connectivity	Fibre Channel, iSCSI
Operating Temperature	10° to 35°C (50° to 95°F)
