Fingerprint reader assembly
Description Spare part number
Fingerprint reader assembly, pike silver (includes bracket) L37373-001
Fingerprint reader assembly, mineral silver (includes bracket) L38041-001
Before removing the ngerprint reader assembly, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Disconnect the battery (see Battery on page 27).

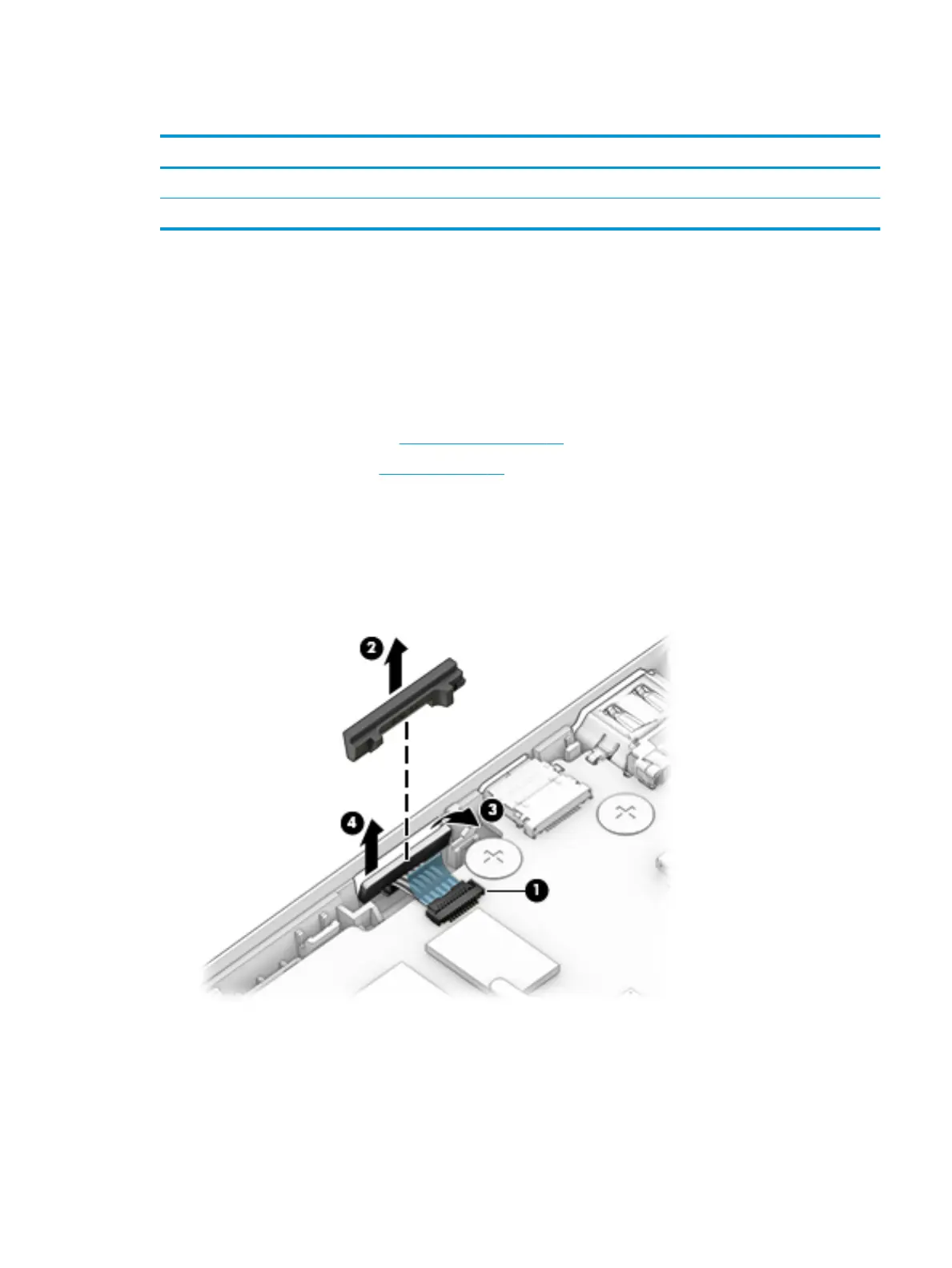

Remove the ngerprint reader assembly:
1. Disconnect the cable from the system board ZIF connector (1).
2. Lift to remove the bracket from the computer (2).
3. From the outside of the chassis, push the ngerprint reader module into the chassis (3), and then
remove the module and cable from the computer (4).
Reverse this procedure to install the ngerprint reader assembly.
Component replacement procedures 35
