Power connector cable
Description Spare part number
Power connector cable L37358-001
Power connector cable Mylar light cover L45223-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Disconnect the battery (see Battery on page 27).
Remove the power connector cable:

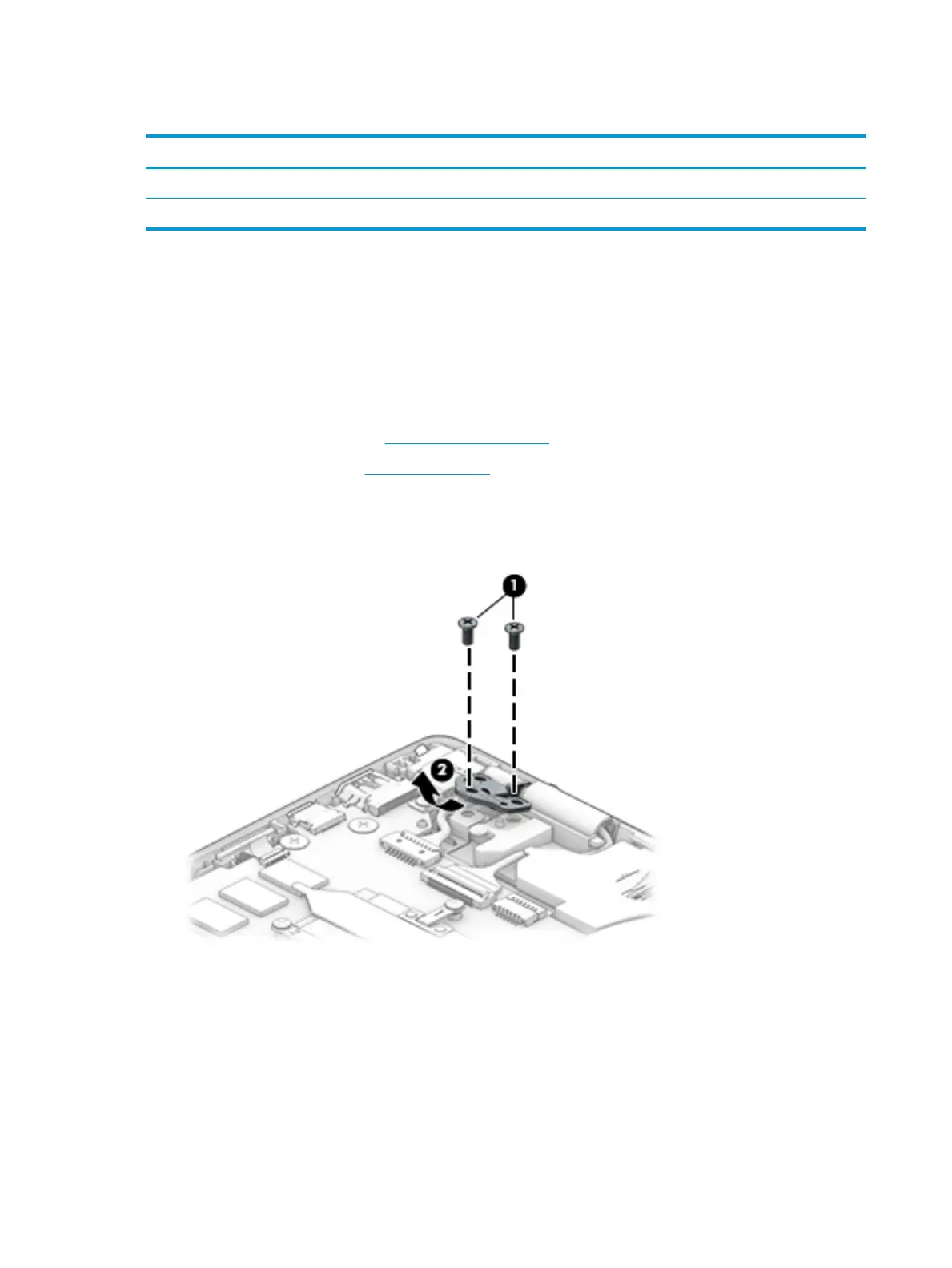

1. Remove the two Phillips M2.5×6.0 screws (1) from the right display hinge, and then rotate the hinge
open as far as possible (2).
2. Remove the Phillips M2.0×2.5 screw (1) from the bracket, and then remove the bracket from on top of
the connector (2).
3. Disconnect the power connector cable from the system board (3).
36 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
