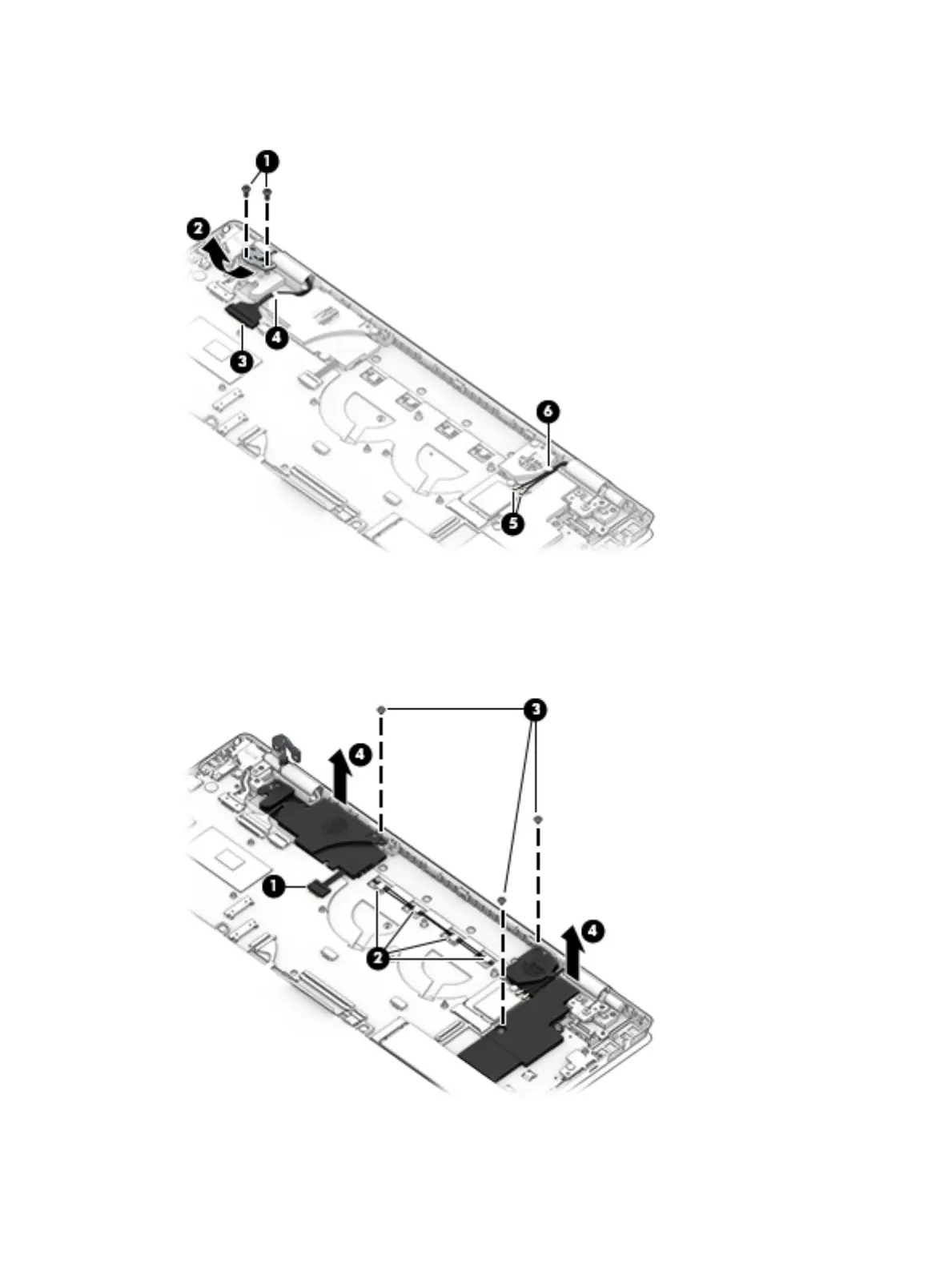

3. Disconnect the antennas from the WLAN module (5), and then remove the antenna cables from the
retention clips and routing channel built into the left speaker (6).
4. Disconnect the speaker cable from the system board (1).
5. Remove the cable between the speakers from the clips under the removed fans (2).
6. Remove the three Phillips M2.0×2.5 screws (3) from the speakers.
7. Remove the speakers from the computer (4).
Reverse this procedure to install the speakers.
42 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
