HP Pavilion 13 User Manual

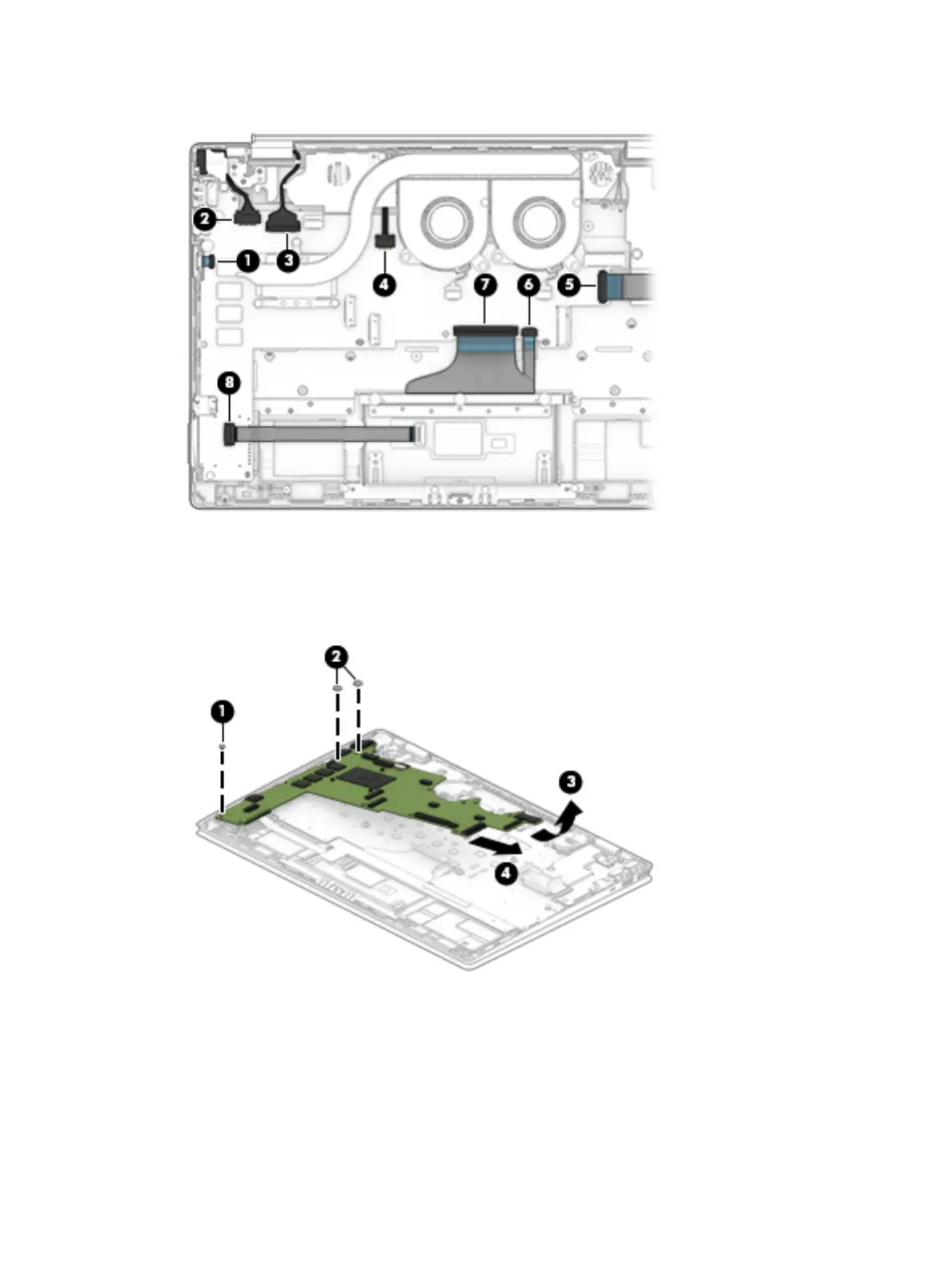

(8) TouchPad cable
2. Remove the Phillips M2.0×2.5 screw (1) that secures the system board to the computer.
3. Remove the two broad head Phillips M2.0×2.0 screws (2) that secure the system board to the computer.
4. Lift the right side of the system board (3), and the pull the system board to the right and out of the
computer (4).
Reverse this procedure to install the system board.
44 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts

HP Pavilion 13 Specifications

General

Display Size	13.3 inches
RAM	Up to 16GB
Storage	Up to 1 TB SSD (varies by model)
Operating System	Windows 10 or Windows 11
Graphics	Intel Iris Xe Graphics
Weight	1.27 kg
Battery Life	Up to 10 hours (depending on configuration and usage)
Ports	USB-C, USB-A, HDMI, headphone/microphone combo
