HP Pavilion 15 User Manual

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 76),
5. Remove the optical drive.
6. Remove the top cover from the base enclosure (see
Base enclosure on page 80).
7. Remove the WLAN module (see
WLAN module on page 96).
8. Remove the subwoofer (see
Subwoofer (select models only) on page 102).
9. Remove the system board (see
System board on page 106).

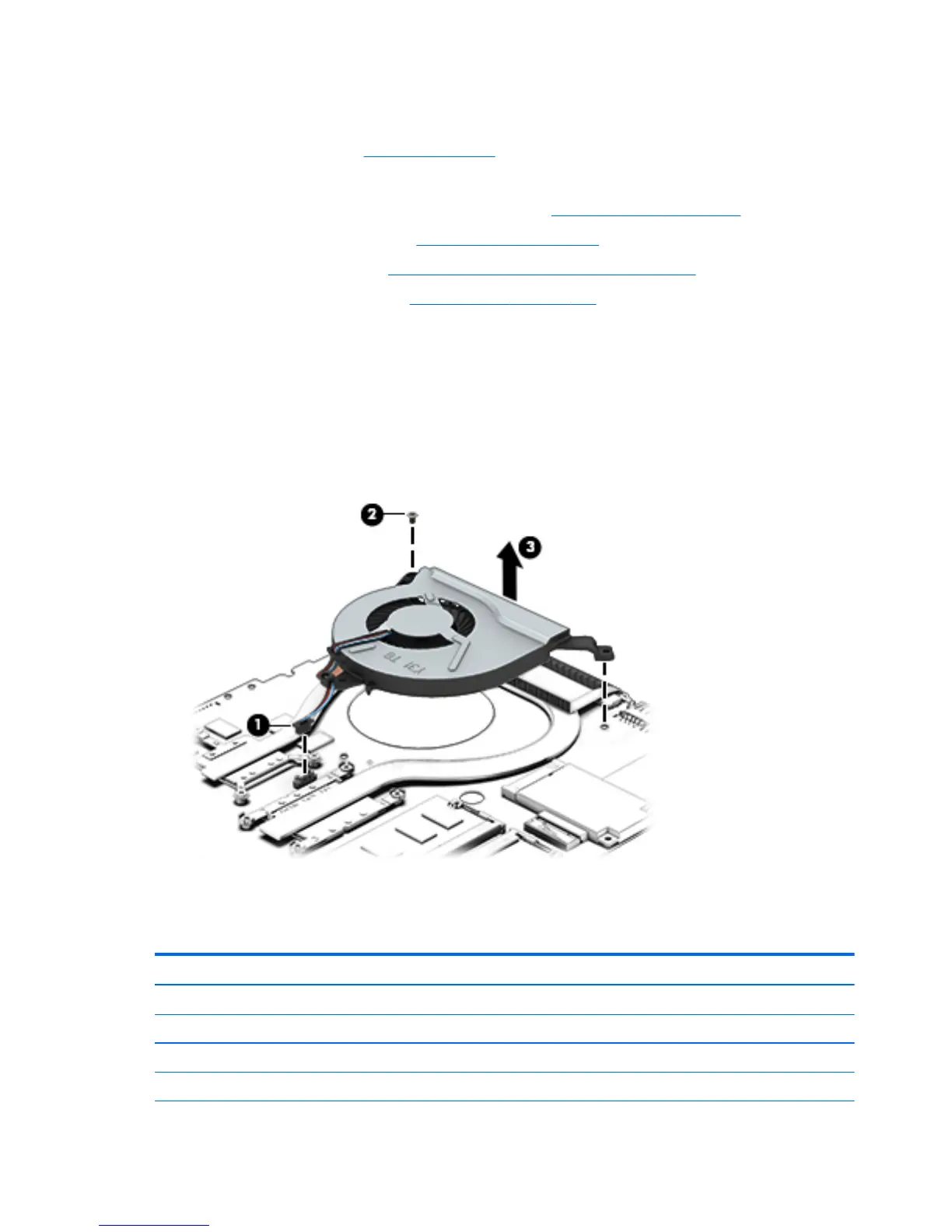

Remove the fan:
1. Turn the system board upside down.
2. Disconnect the fan cable from the system board, and then remove the piece of tape that secures
the fan to the heat sink (1).
3. Remove the 3 screws securing the fan to the unit (2) and lift the fan to remove it (3).
4. Lift the fan (4) to remove it.
Reverse this procedure to install the fan.
Heat sink
Description Spare part number
For use with HP Pavilion 15 Notebook PC computer models:
For use only on computer models with Intel processors discrete memory 19 W 762524-001
For use only on computer models equipped with AMD processors and UMA graphics 19 W 767339-001
For use only on computer models equipped with AMD processors and discrete graphics 19W 767340-001
120 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP Pavilion 15 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Black
Country of origin	China
Bus type	DMI2
Stepping	C0
Tjunction	100 °C
Processor cache	3 MB
Processor cores	2
Processor model	i5-4200U
System bus rate	- GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-4200 Mobile series
Processor socket	BGA 1168
Processor threads	4
Processor codename	Haswell
Processor frequency	1.6 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	2.6 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x4, 2x4
Thermal Design Power (TDP)	15 W
Maximum number of PCI Express lanes	12
Accelerometer	Yes
Motherboard chipset	-
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3L-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 4 GB
HDD speed	5400 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Total storage capacity	500 GB
Compatible memory cards	SD
Number of HDDs installed	1
HD type	Not supported
Display surface	Gloss
Display diagonal	15.6 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
On-board graphics card ID	0xA16
Discrete graphics card model	AMD Radeon HD 8670M
On-board graphics card model	Intel® HD Graphics 4400
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
Audio system	DTS Sound+
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
Pointing device	Touchpad
Operating system installed	Ubuntu Linux
Processor code	SR170
Processor ARK ID	75459
Intel TSX-NI version	0.00
Processor package size	40 x 24 x 1.5 mm
Intel ME Firmware Version	9.5
Supported instruction sets	AVX 2.0
Intel Smart Connect Technology version	1.00
Battery life (max)	- h
AC adapter power	65 W

Weight and Dimensions

Depth	258 mm
Width	385.6 mm
Height	22.6 mm
Weight	2330 g
