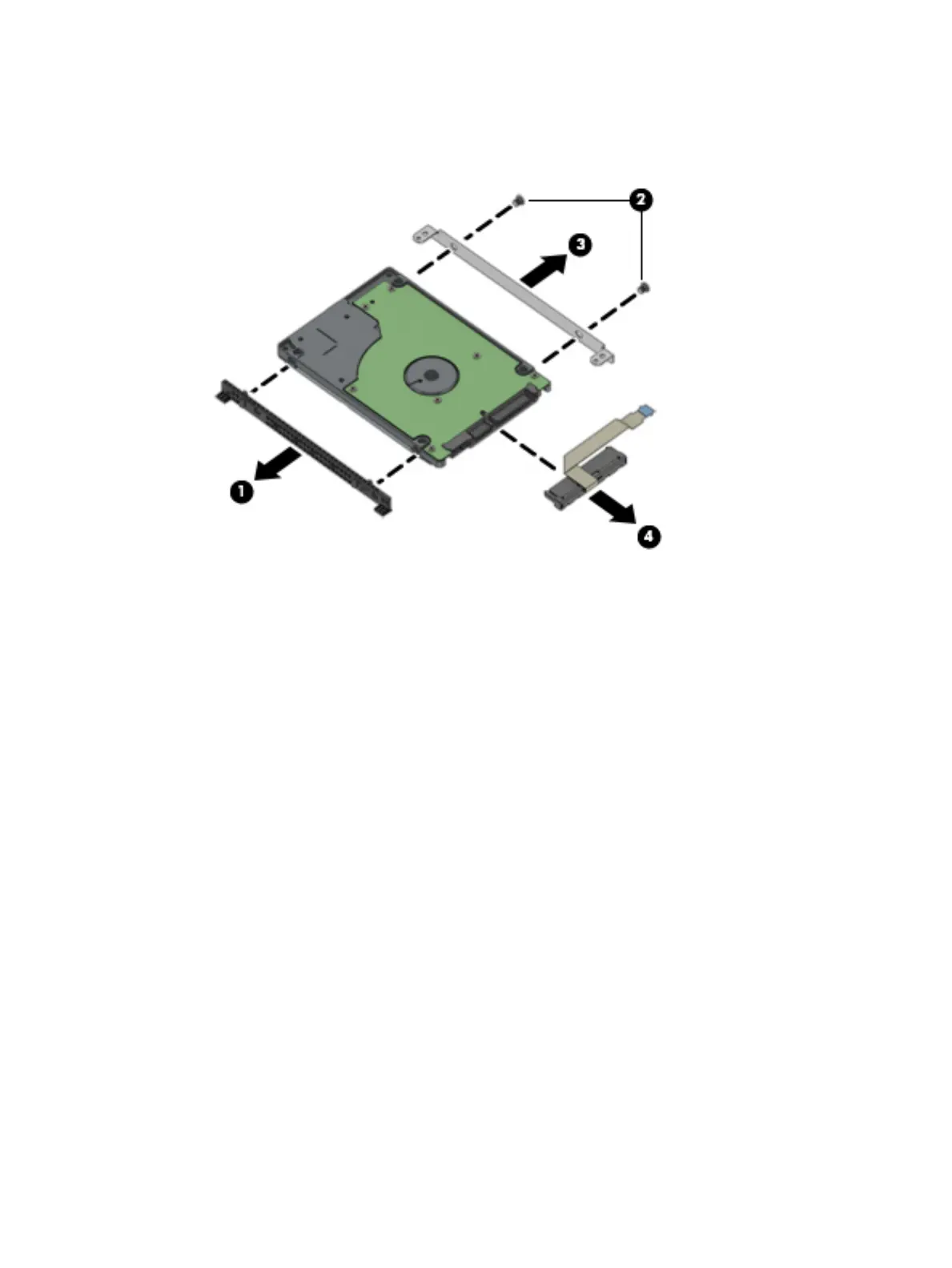

4.
If it is neces
sary to disassemble the har
d drive, pul
l the rubber brack
et away fr
om the hard drive
(1)
,
remo
ve the two Phillips M3.0 × 3.0 scr
ews
(2)
, remov
e the metal brack
et
(3)
, and then disconnect
the hard driv
e cable
(4)
.
Rev
erse this procedur
e to re
assemble and instal
l the hard driv
e.
Component r
eplacement pr
ocedure
s
51
58
60
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 Getting to Know Your Computer
15
Right Side
15
Left Side
16
Display
17
Keyboard Area
19
Touchpad
19
Lights
20
Power Button, Speakers, and Vent
21
Special Keys
22
Action Keys
23
Bottom
24
Labels
24
3 Illustrated Parts Catalog
26
Computer Components
26
Display Assembly Components
31
Mass Storage Devices
34
Cables
35
Miscellaneous Parts
36
4 Removal and Replacement Procedures Preliminary Requirements
37
Tools Required
37
Service Considerations
37
Plastic Parts
37
Cables and Connectors
37
Drive Handling
38
Workstation Guidelines
38
Electrostatic Discharge Information
38
Generating Static Electricity
39
Preventing Electrostatic Damage to Equipment
39
Personal Grounding Methods and Equipment
40
Grounding the Work Area
40
Recommended Materials and Equipment
40
Packaging and Transporting Guidelines
41
5 Removal and Replacement Procedures for Authorized Service Provider Parts
42
Component Replacement Procedures
42
Preparation for Disassembly
42
Bottom Cover
42
Battery
45
Display Assembly
47
Hard Drive
58
WLAN Module
60
Solid-State Drive
62
Optane Memory Module
63
Memory Module
64
Memory Card Reader Board
65
USB Board (Select Products Only)
67
Touchpad
68
Lock Bracket
71
Fan(S)
73
Heat Sink
75
System Board
78
Speakers
82
Power Connector Cable
84
Top Cover with Keyboard
86
6 Using Setup Utility (BIOS)
87
Starting Setup Utility (BIOS)
87
Updating Setup Utility (BIOS)
87
Determining the BIOS Version
87
Downloading a BIOS Update
88
7 Using HP PC Hardware Diagnostics
89
Using HP PC Hardware Diagnostics Windows (Select Products Only)
89
Downloading HP PC Hardware Diagnostics Windows
89
Downloading the Latest HP PC Hardware Diagnostics Windows Version
90
Downloading HP Hardware Diagnostics Windows by Product Name or Number (Select Products Only)
90
Installing HP PC Hardware Diagnostics Windows
90
Using HP PC Hardware Diagnostics UEFI
90
Starting HP PC Hardware Diagnostics UEFI
91
Downloading HP PC Hardware Diagnostics UEFI to a USB Flash Drive
91
Downloading the Latest HP PC Hardware Diagnostics UEFI Version
91
Downloading HP PC Hardware Diagnostics UEFI by Product Name or Number (Select Products Only)
91
Using Remote HP PC Hardware Diagnostics UEFI Settings (Select Products Only)
92
Downloading Remote HP PC Hardware Diagnostics UEFI
92
Downloading the Latest Remote HP PC Hardware Diagnostics UEFI Version
92
Downloading Remote HP PC Hardware Diagnostics UEFI by Product Name or Number
92
Customizing Remote HP PC Hardware Diagnostics UEFI Settings
92
8 Backing Up, Restoring, and Recovering
94
Backing up Information and Creating Recovery Media
94
Using Windows Tools
94
Using the HP Cloud Recovery Download Tool to Create Recovery Media (Select Products Only)
94
Restoring and Recovery
95
Restoring, Resetting, and Refreshing Using Windows Tools
95
Recovering Using HP Recovery Media
95
Changing the Computer Boot Order
95
9 Specifications
96
10 Power Cord Set Requirements
97
Requirements for All Countries
97
Requirements for Specific Countries and Regions
97
11 Recycling
99
Index
100
