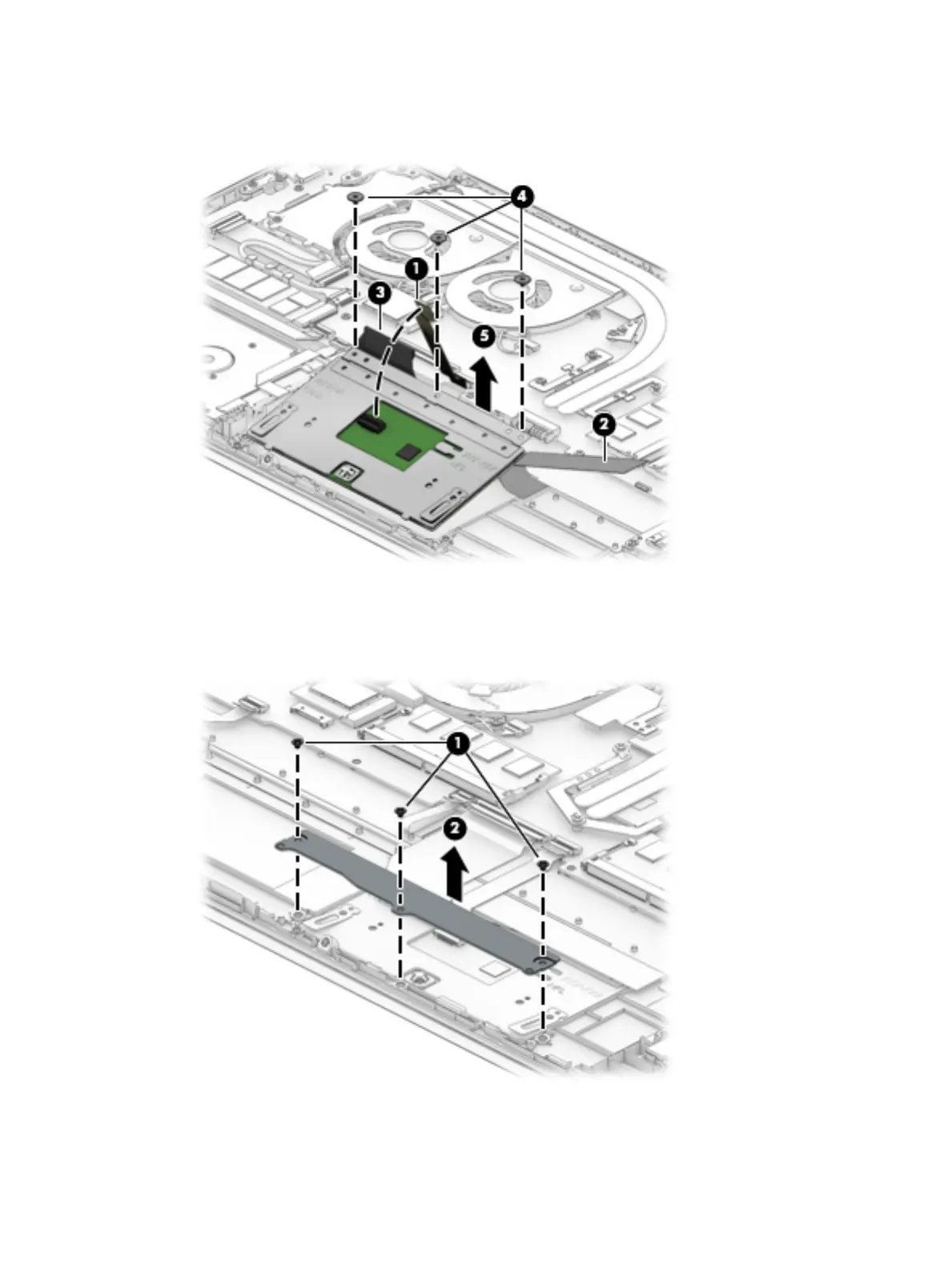

6. Remove the three Phillips M2.0 × 2.0 broadhead screws (4) that secure the TouchPad to the computer.
7. Remove the TouchPad from the computer (5).
Remove the TouchPad on models equipped with GTX graphics:
1. Remove the three Phillips M2.0 × 2.5 screws (1) that secure the TouchPad bracket to the computer.
2. Remove the bracket (2).
3. Disconnect the cable from the ZIF connector on the TouchPad (1).
4. Lift the clear plastic from on top of the screws (2).
Component replacement procedures 61
