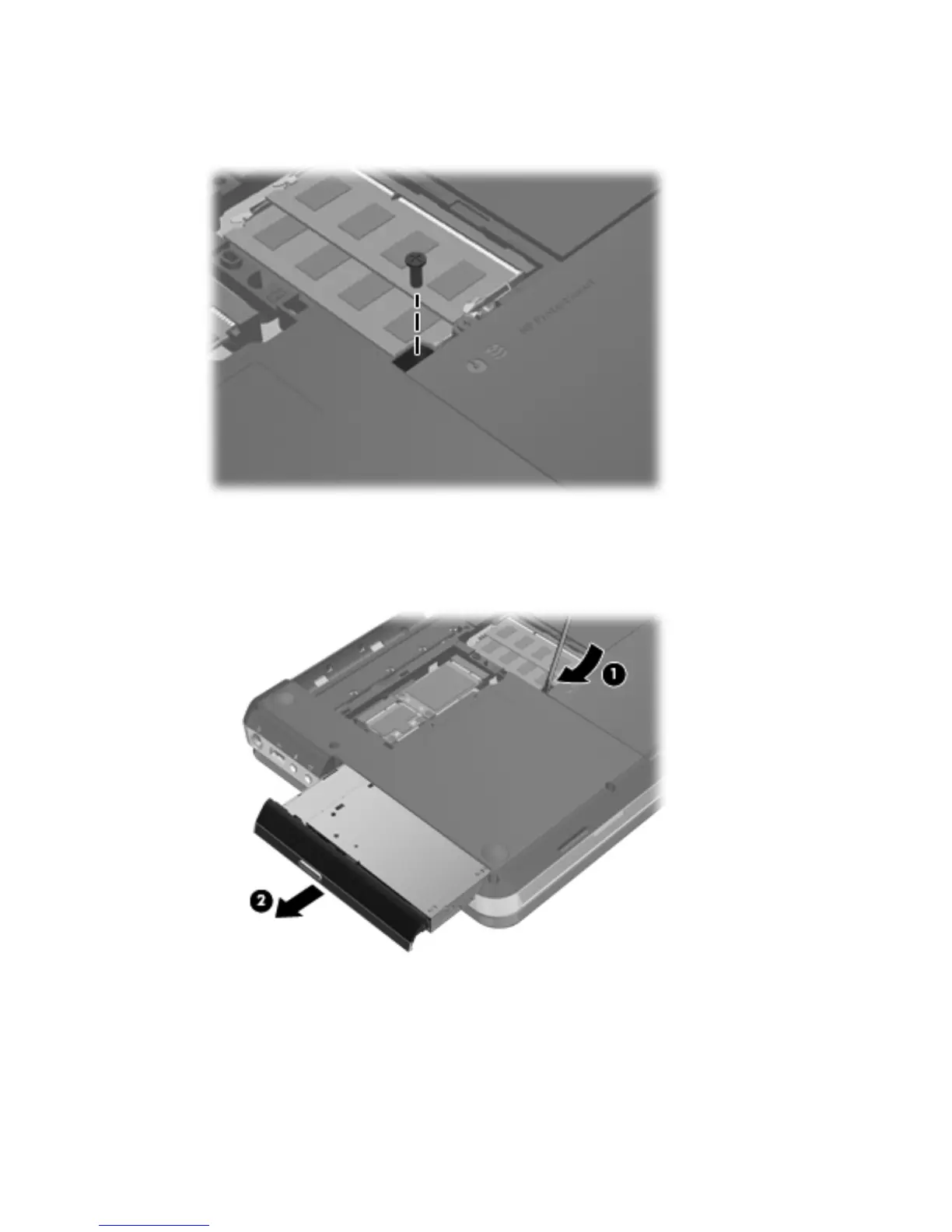

Remove the optical drive:
1. Remove the Phillips PM2.5×7.0 screw that secures the optical drive to the computer.
2. Use a flat blade screwdriver (1) or similar tool to press the back of the optical drive to release the
drive from the computer.
3. Remove the optical drive (2) by sliding it out of the optical drive bay.
4.
If it is necessary to replace the optical drive bracket, position the optical drive with the rear panel
toward you.
5. Remove the two Phillips PM2.0×3.0 screws (1) that secure the bracket to the optical drive.
Component replacement procedures
53
