2.

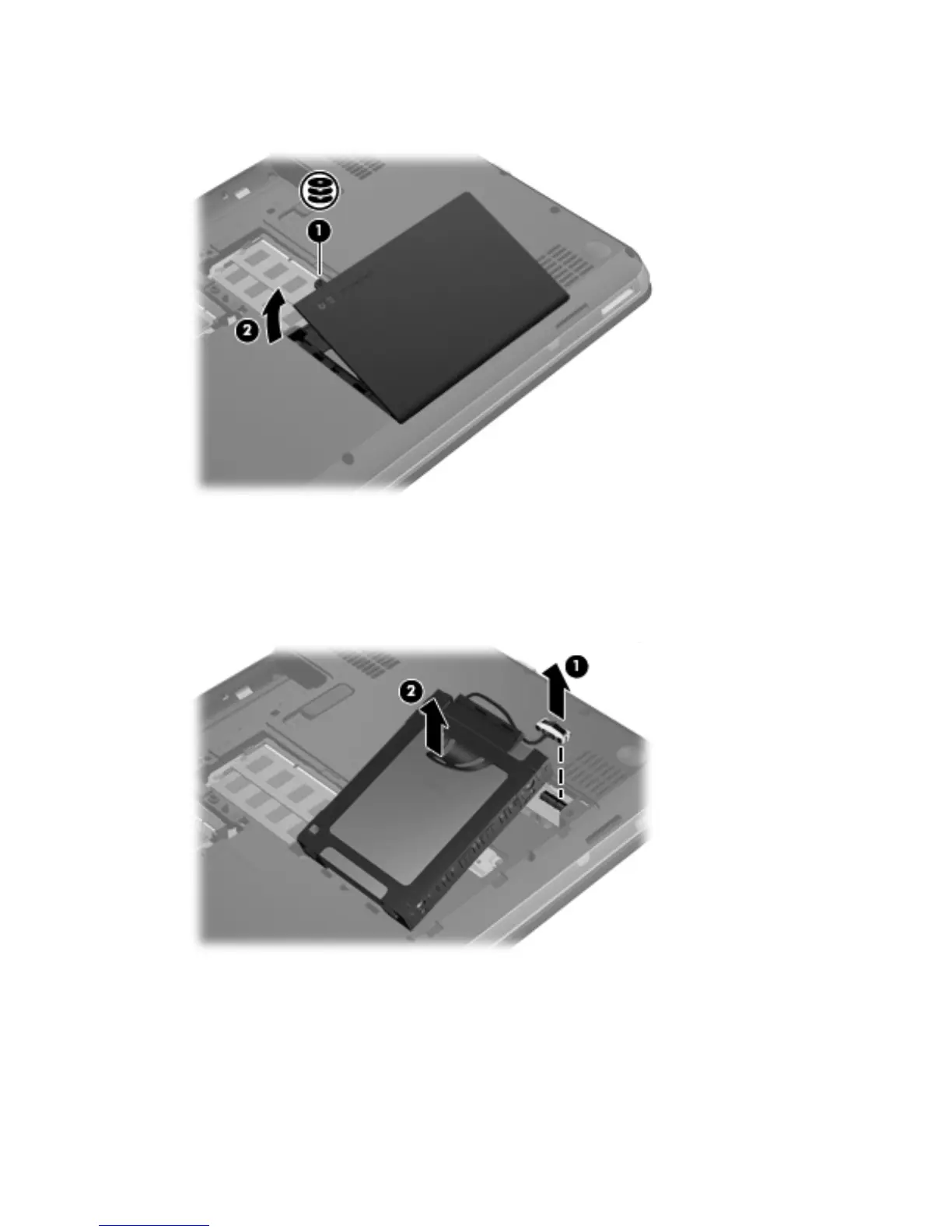

Lift the rear edge of the hard drive compartment cover (2) up and forward until it rests at
an angle.
3. Remove the hard drive compartment cover. The hard drive compartment cover is available in the
Plastics Kit, spare part number 650478-001.
4. Disconnect the hard drive connector cable (1) from the system board.
5. Remove the hard drive (2).
56 Chapter 4 Removal and replacement procedures
