e.
Top cover (see
Top cover on page 60)
f. Audio/USB board (see
Audio/USB board on page 73)

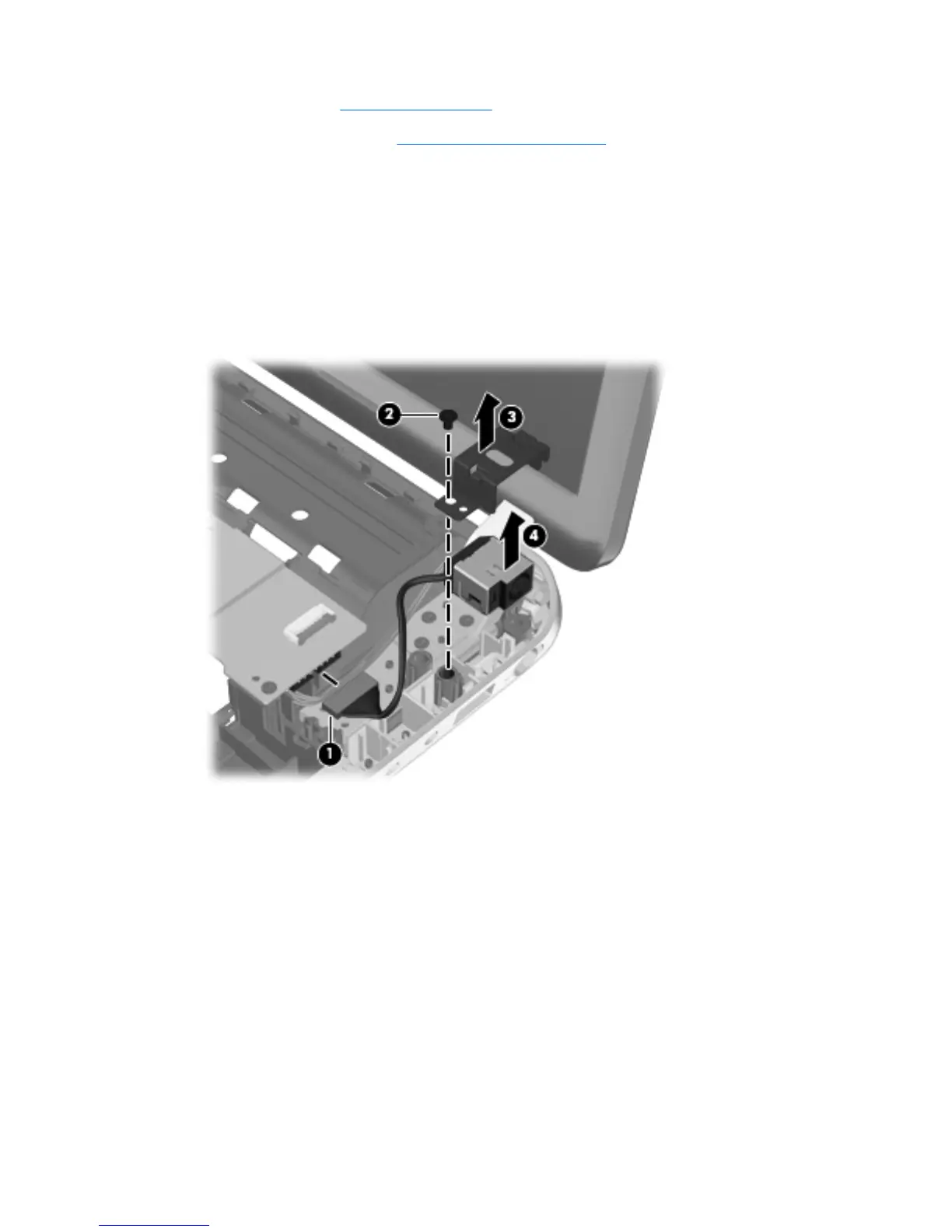

Remove the power connector cable:
1. Disconnect the power cable (1) from the system board.
2. Remove the Phillips PM2.5×5.0 screw (2) that secures the power connector and bracket to
the computer.
3.
Remove the power connector bracket (3).
4.
Remove the power connector cable (4).
Reverse this procedure to install the power connector cable.
Component replacement procedures
75
