5–30 Maintenance and Service Guide
Removal and Replacement Procedures
4. Remove the switch cover (Section 5.10).
5. Remove the keyboard frame (Section 5.11).
6. Remove the keyboard (Section 5.13).
7. Disconnect the display cable 1 from the system board.
8. Remove the wireless antenna cables from the clips 2 in the
top cover.

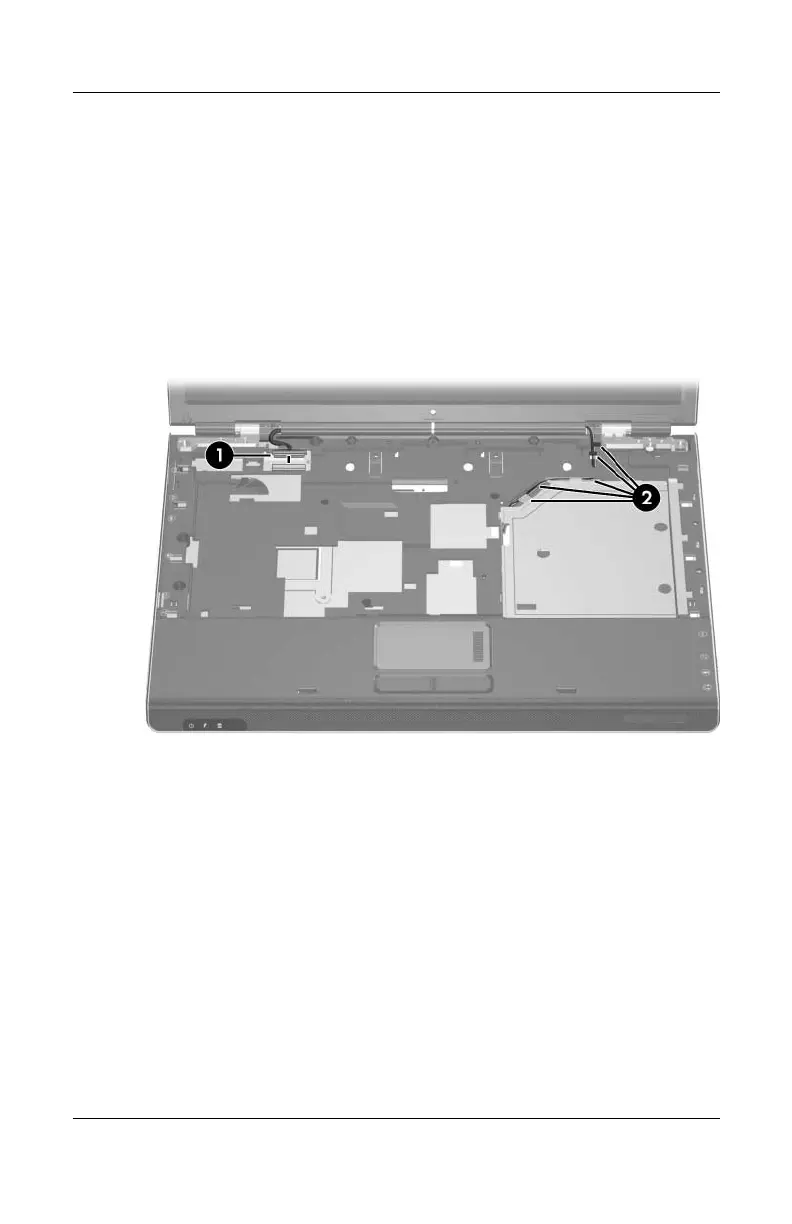

Disconnecting the Display and Wireless Antenna Cables
