Removal and Replacement Procedures
Maintenance and Service Guide 5ā37
ā
The display release hook arm and spring are available in the
Display Hinge Kit, spare part number 407796-001.
17. If it is necessary to replace the display release hook arm,
slide and hold the arm 1 to the right.
18. Slide the right side of the arm 2 forward until it clears the
tab 3 on the display enclosure.
19. Lift the arm 4 out of the display enclosure.
20. Detach the display release hook arm spring 5 from the tab
on the display enclosure.
21. Remove the display release hook arm.

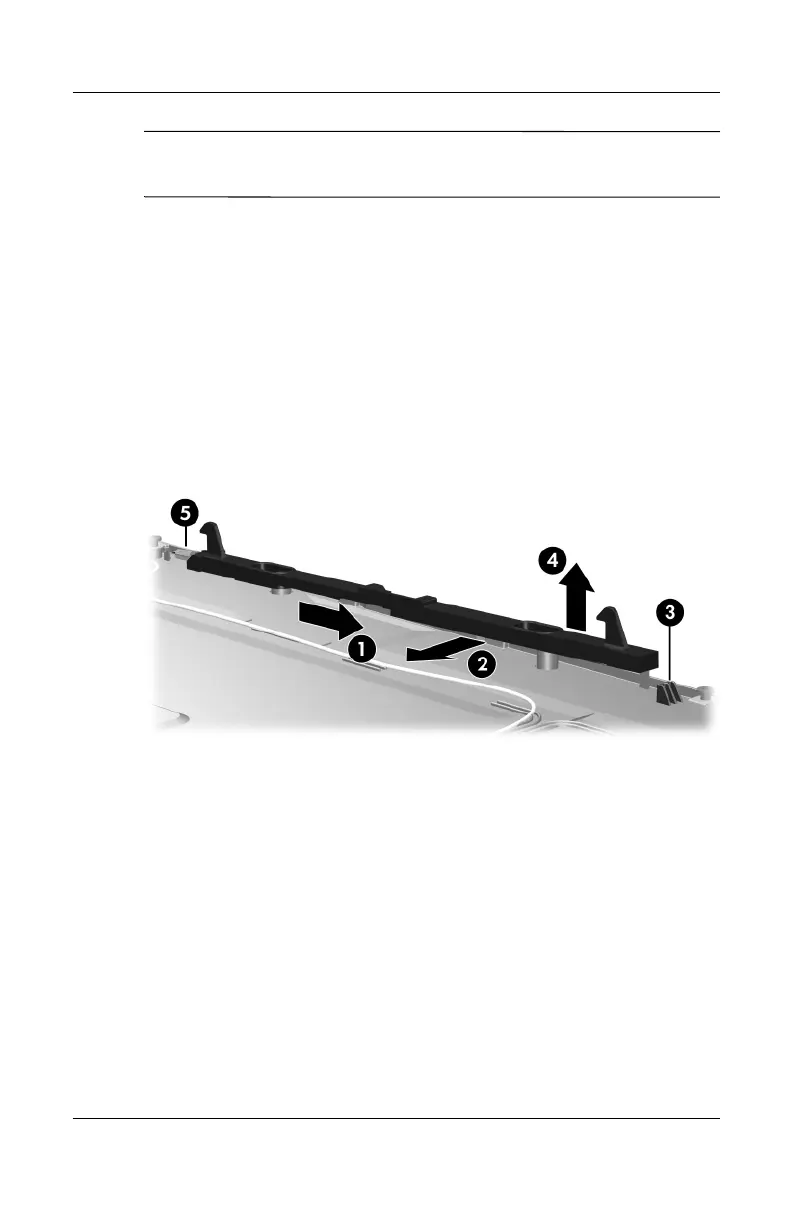

Removing the Display Release Hook Arm
