Steps 4 through 6 apply to processor sockets equipped with a
release arm.
4. Slide the tip of the processor socket release arm 1 to the right
until it clears the notch 2 on the processor socket.
5. Swing the processor socket release arm 3 up and back as
far as it will go.
6. Lift the processor straight up and remove it 4.
ā
The gold triangle 5 on the processor should be aligned in the
front left corner when you install the processor.

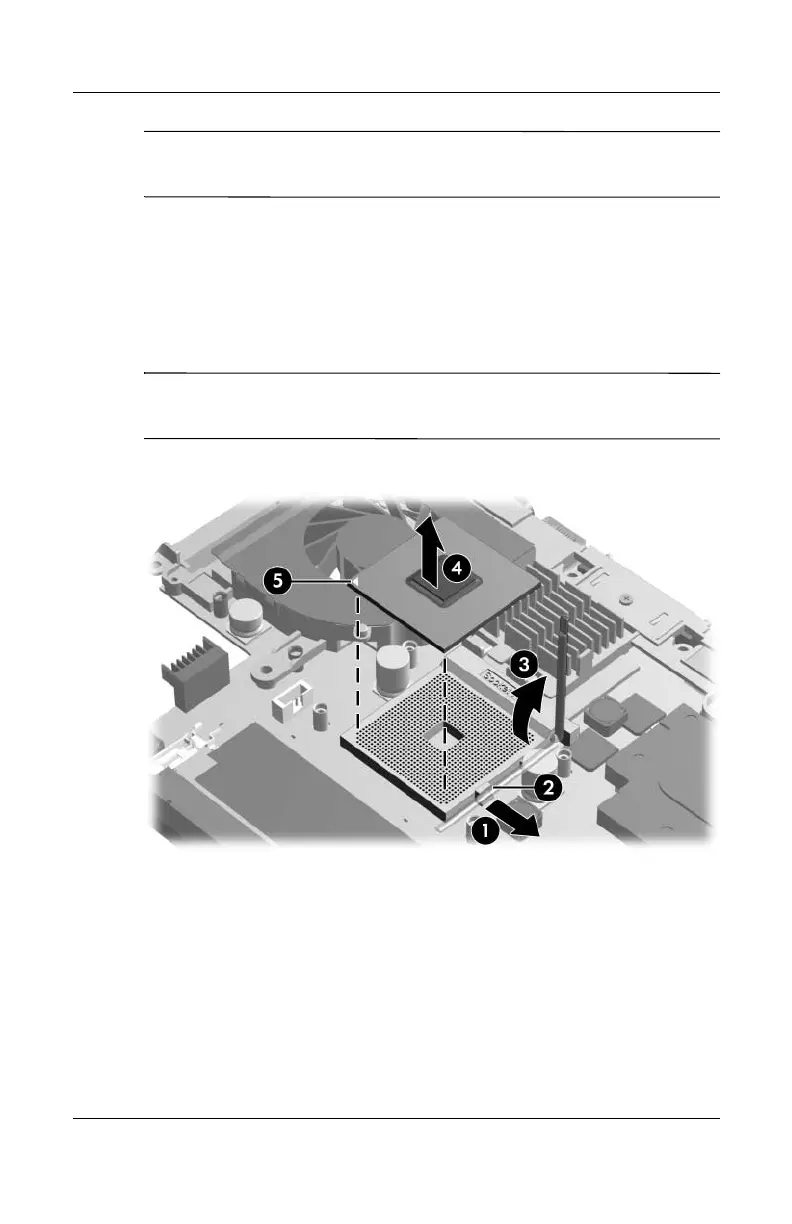

Removing the Processor from a Socket with a Release Arm
Reverse the above procedure to install the processor.
