5–68 Maintenance and Service Guide
Removal and Replacement Procedures

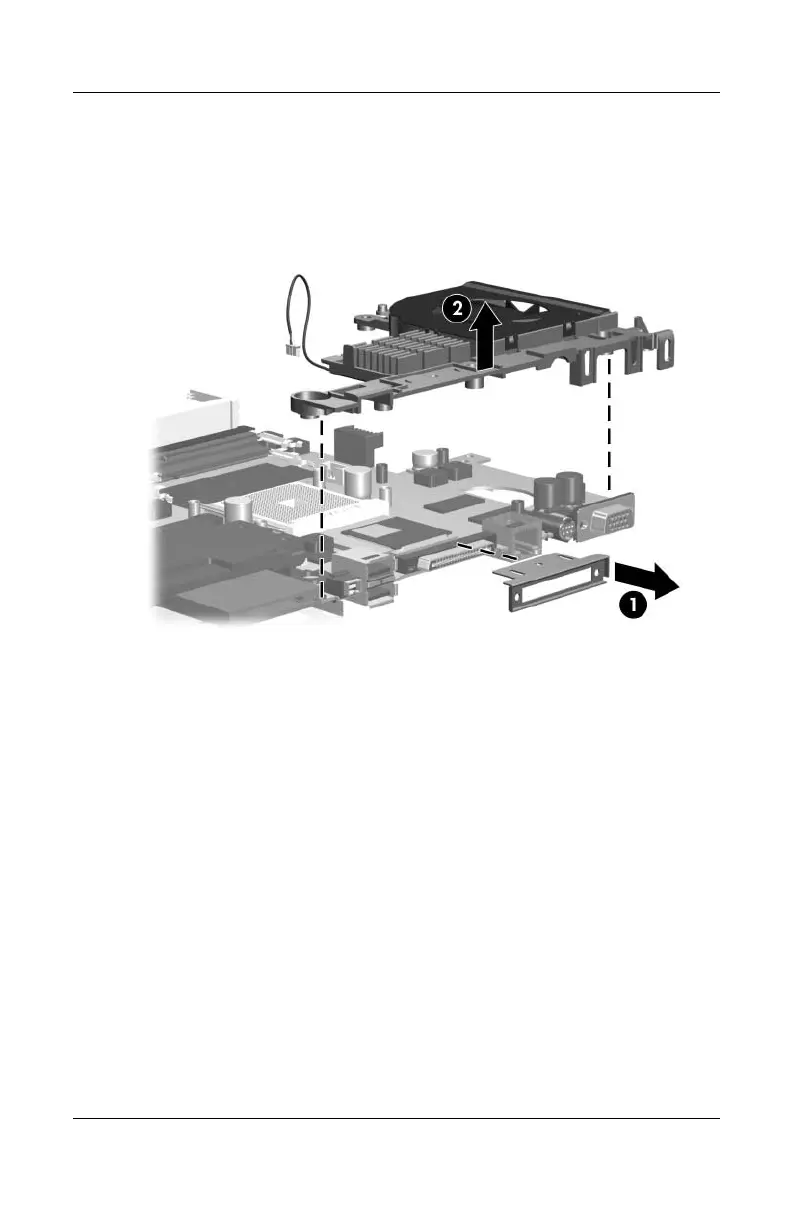

4. Slide the expansion port bracket 1 away from the system
board.
5. Remove the fan assembly 2.
Removing the Fan Assembly
Reverse the above procedure to install the fan assembly.
