HP Pavilion DV5000 Maintenance And Service Guide

Removal and Replacement Procedures
Maintenance and Service Guide 5–75
2. Turn the system board upside down with the expansion port 2
toward you.

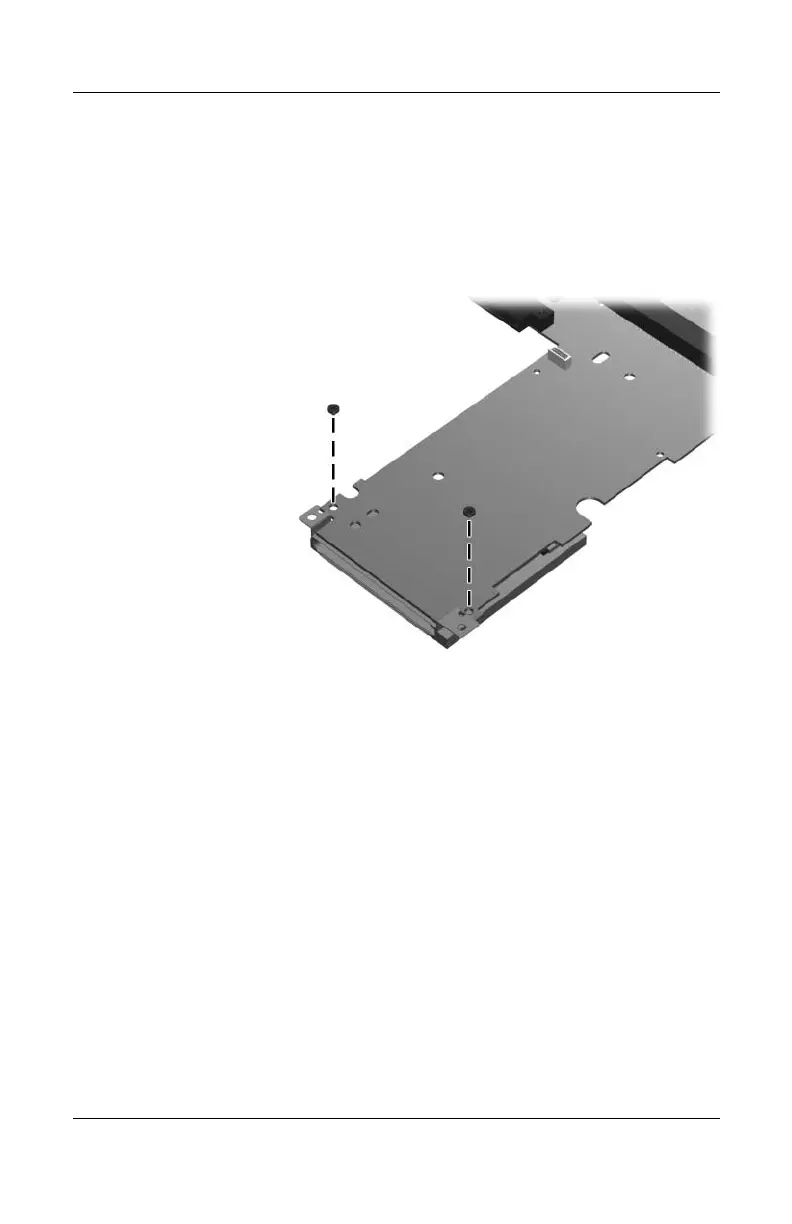

3. Remove the two PM2.0×4.0 screws that secure the
ExpressCard assembly to the system board.
Removing the ExpressCard Assembly Screws
Download from Www.Somanuals.com. All Manuals Search And Download.

HP Pavilion DV5000 Specifications

General

CPU	Intel Pentium M or Intel Celeron M
Chipset	Intel 915GM
Memory	Up to 2 GB DDR2
Graphics	Intel Graphics Media Accelerator 900
Display	15.4-inch WXGA
Hard Drive	40 GB to 100 GB
Optical Drive	DVD\u00b1RW
Wireless	802.11b/g
Operating System	Windows XP Home or Windows XP Professional
Battery Life	Up to 3 hours
Ports	3 USB 2.0, VGA, S-Video, Ethernet, Modem, Headphone, Microphone, ExpressCard/54
