5–76 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the system board top-side up with the expansion port 2
toward you.
5. Remove the ExpressCard assembly from the system board.

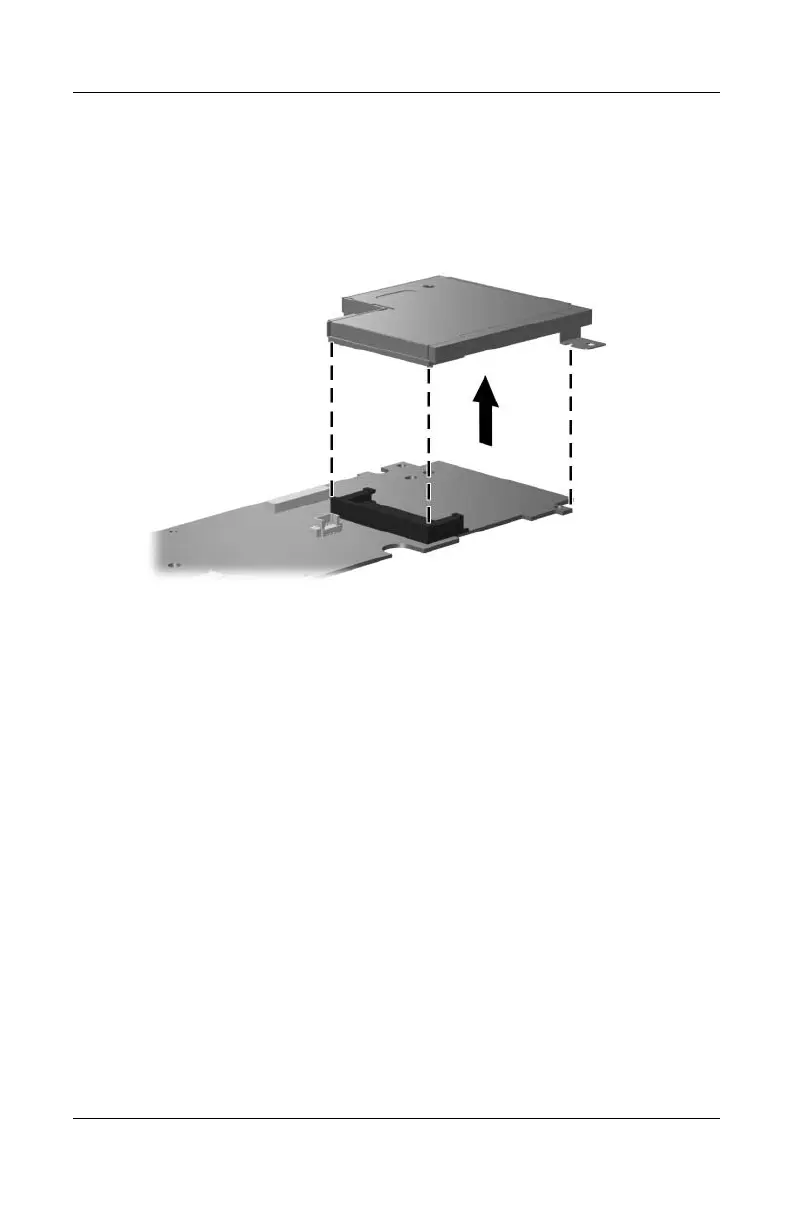

Removing the ExpressCard Assembly
Reverse the above procedures to install the ExpressCard
assembly.
