Removal and Replacement Procedures
Maintenance and Service Guide 5–9

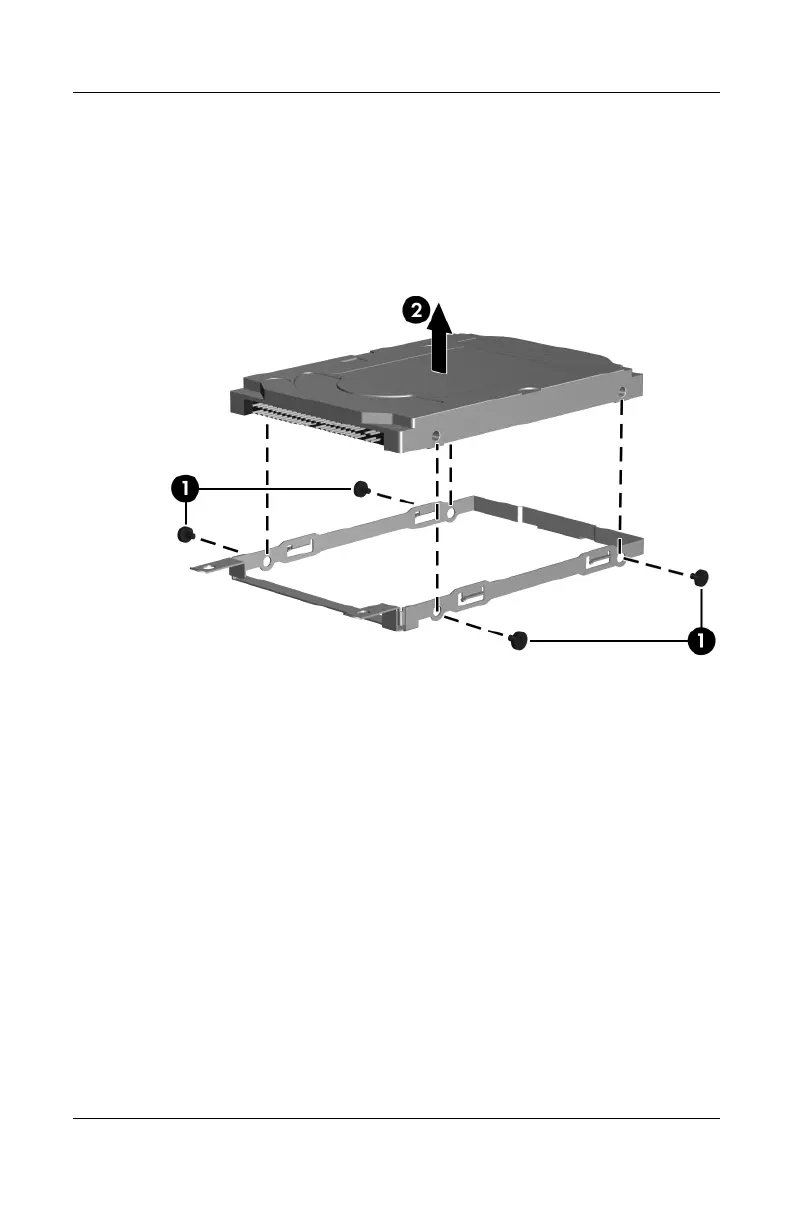

7. Remove the four Phillips PM3.0×3.0 hard drive frame
screws 1 that secure the hard drive frame to the hard drive.
8. Lift the hard drive straight up 2 to remove it from the hard
drive frame.
Removing the Hard Drive Frame
Reverse the above procedure to reassemble and install the
hard drive.
